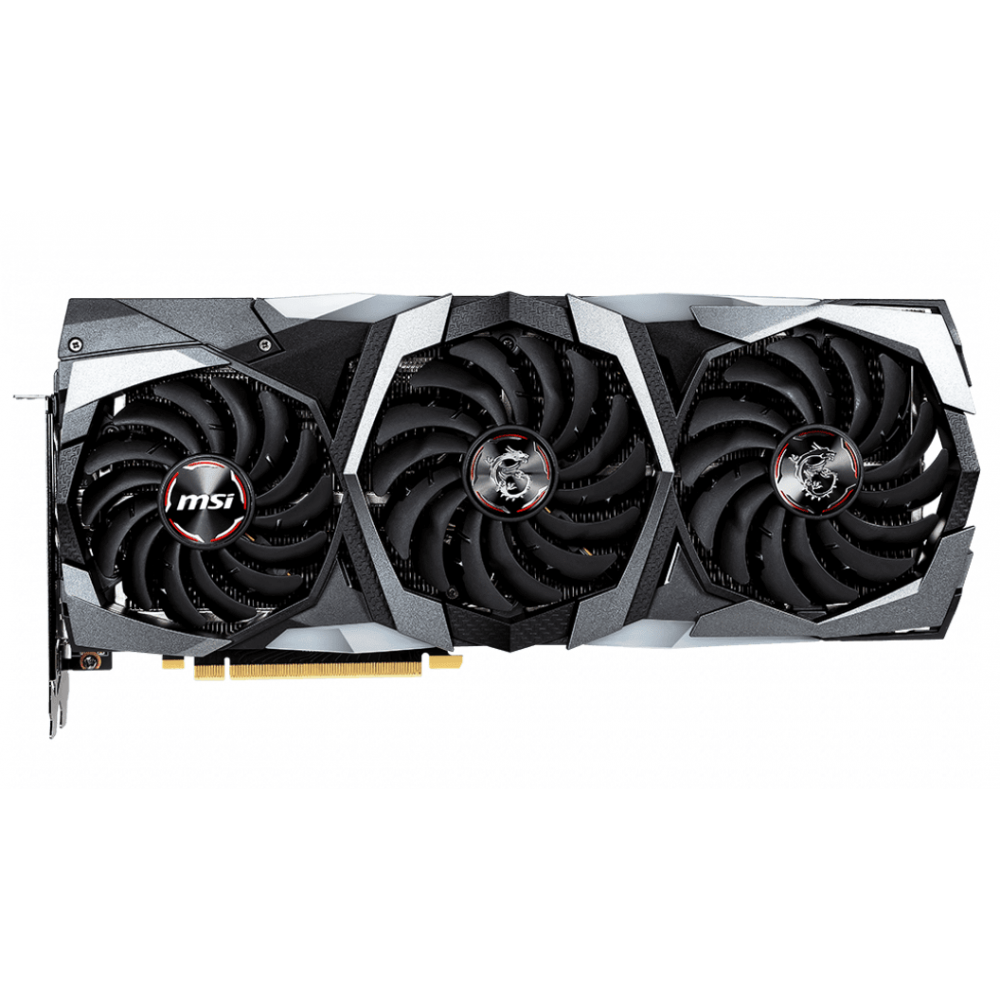

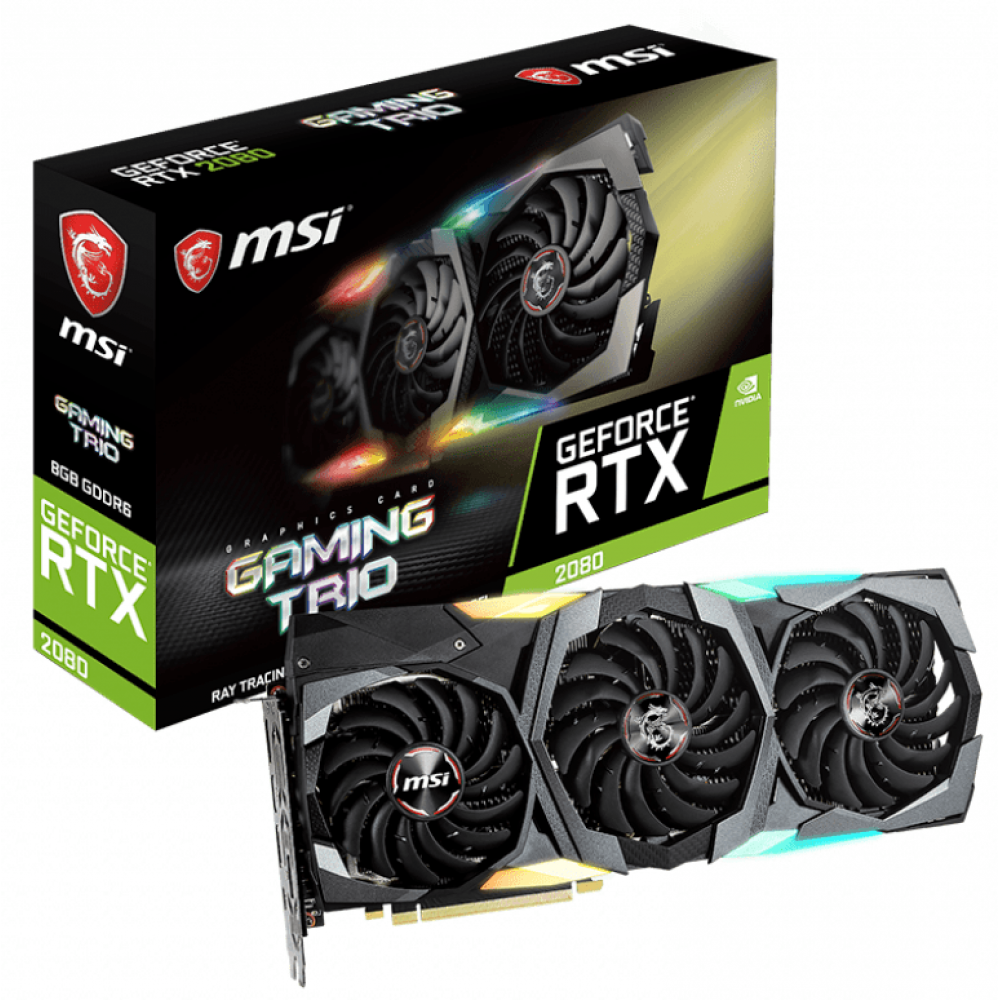

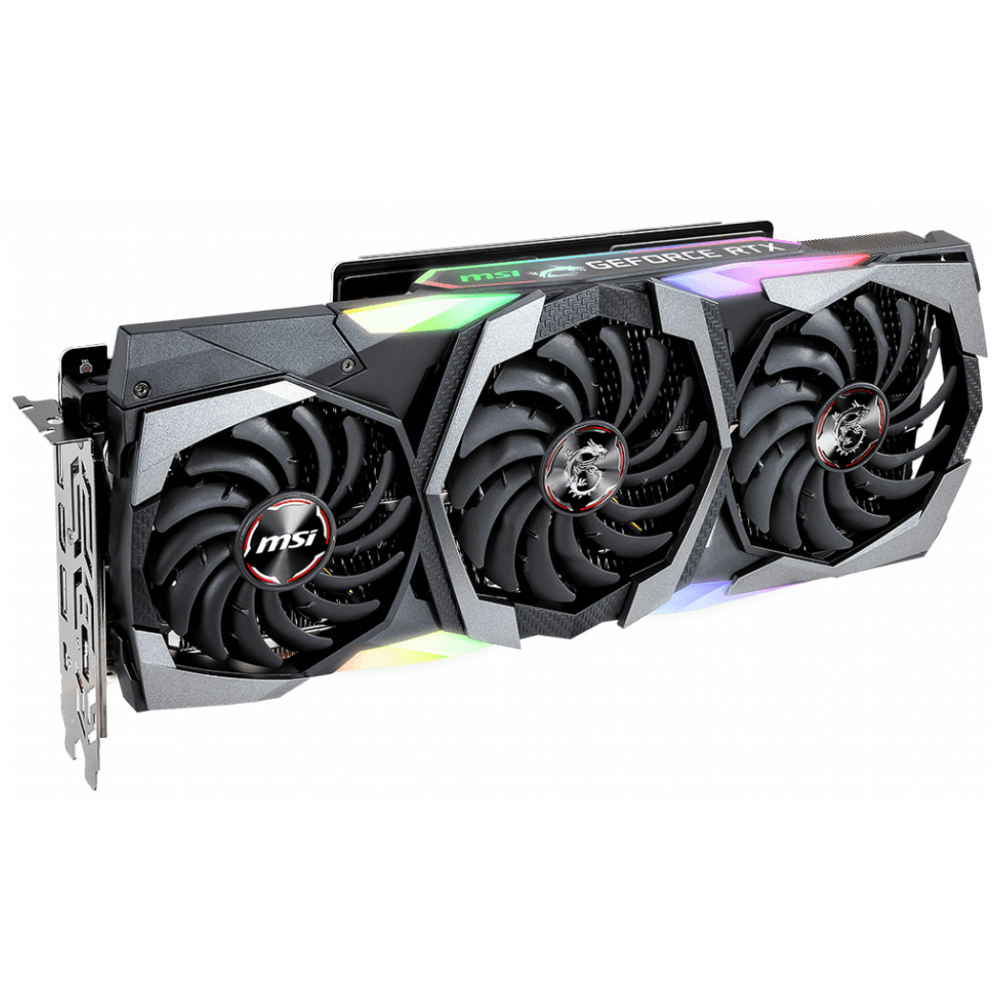

Video card MSI GeForce RTX2080 8GB GDDR6 GAMING TRIO (GF_RTX_2080_GAMING_TRIO)

Description Video card MSI GeForce RTX2080 8GB GDDR6 GAMING TRIO (GF_RTX_2080_GAMING_TRIO)

Architecture of NVIDIA Turing

This revolutionary architecture in combination with the latest GeForce RTX platform integrates technologies of ray tracing in real time, artificial intelligence and programmable shading to allow you to enjoy games at absolutely other level.

RAY TRACING IN REAL TIME IN GAMES

Ray tracing is the solution for creation of realistic lighting, reflections and shadows providing higher level of realism in comparison with traditional ways of rendering. Turing became the first architecture allowing to carry out ray tracing in real time on GPU.

by

with memory of the next generation of GDDR6, the DirectX 12 support, etc. It is the updated graphics.

RETURN of the MONSTER

Model of the GeForce RTX 20 GAMING TRIO series are monsters among video cards as in them the most powerful graphic processors and the most powerful cooling system with three fans are used. Black color is combined in their design with gray color of weapon metal. In their graceful shape the metal intensifying plate with a polished surface is selected, and on the front and side parties it is possible to see magnificent full-color illumination which is configured and synchronized with illumination of other components via the Mystic Light application.

COLOURFUL ILLUMINATION

Fill the video card with bright colors by means of the built-in illumination. Having used the Mystic Light utility, it is possible to select among millions of shades and several dynamic visual effects. It is extremely simple change appearance of the device, it is necessary to make several clicks a mouse only. If you were tired of violence of paints a little, then can disconnect illumination also easily completely.

UNDER RELIABLE COVER

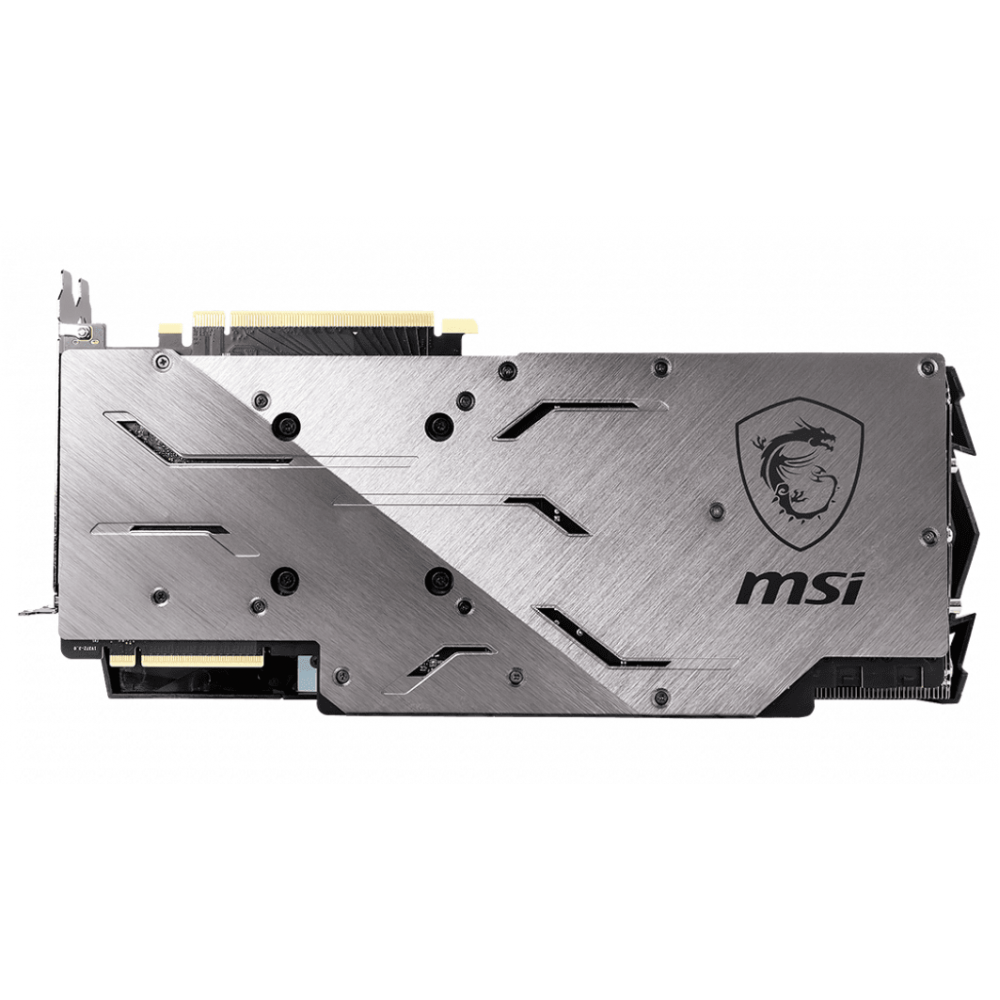

On a reverse side of the video card of the GAMING TRIO series is the intensifying plate - BEKPLEYT which not only does the device stronger, but also gives it cool appearance. Besides, thanks to thermolaying she acts as a radiator for some elements of the video card.

TRI-FROZR COOLING SYSTEM

New TRI-FROZR system continues to uphold an excellent reputation of MSI in the field of cooling. Use of three fans on a huge radiator provides excellent cooling and silence.

TORX 3.0 FANS

TORX Fans of the latest version raise an efficiency bar even above. Traditional blades with the updated impeller focus an air flow which then goes the dispersive blades creating the increased static pressure down.

Double-row bearings provide with

MSI TORX 3.0 fans the long term of operation, guaranteeing a trouble-free geyming for a long time. Working under loading, fans remain practical noise-free. It allows the video card to remain cold even during the heaviest game sessions.

THOUGHT-OVER AERODYNAMICS

Creation of the best cooling system requires knowledge of laws of aerodynamics.

Copper thermal tubes pass

through the massive radiator consisting of a set of aluminum edges, distributing heat on all its length. For the greatest effect they are located most densely to each other in the radiator basis, around contact with the graphic processor.

COPPER BASIS

is a massive plate from the nickelized copper which takes away heat from the graphic chip and transfers him to thermal tubes for the subsequent dispersion In the basis of a cooler.

RMOINTERFACE X

During creation of the ideal cooling system needs to consider each detail and therefore in coolers of the video cards MSI will be applied high-quality thermopaste which represents the effective and durable thermal interface.

OPTIMIZED DISTRIBUTING

Under metal radiators disappears the most important – the printed circuit board on which all components of the video card are placed. The optimized distributing of electronic connections between them allows them to exchange data on maximum speed.

MEMORY COOLING

For cooling of chips of memory a cast metal plate which also prevents a bend of the printed circuit board, being attached to its fixing panel. Power system elements in the right part of the device are cooled with a plate which is a part of the main radiator.

Not all printed circuit boards are equally good

. The payment from MSI differs from referensny in more powerful power system, a large number of layers and the bigger area. All this eventually is expressed in more stable operation of the device.

Characteristic Video card MSI GeForce RTX2080 8GB GDDR6 GAMING TRIO (GF_RTX_2080_GAMING_TRIO)

• Video card (model) NVIDIA GeForce RTX 2080
• Processor (clock speed of GPU/Boost), MHz 1710
• Video card (memory size) 8 GB
• Video card (memory type) gDDR 6
• Bitness of the memory bus, bit 256
• Frequency of operation of the memory bus, MHz 14000
• Additional power 8+8 pin
• Version of DirectX 12
• Occupied slots (width) 2.7

• Class game
• Guarantee, month 36
• Technology NVIDIA G-Sync, NVIDIA NVLINK, NVIDIA VRWorks
• Video card (model) NVIDIA GeForce RTX 2080
• Processor (clock speed of GPU/Boost), MHz 1710
• Processor (technical process), nanometer 12
• Quantity of kernels of CUDA 2944
• Video card (memory size) 8 GB
• Video card (memory type) gDDR 6
• Bitness of the memory bus, bit 256
• Frequency of operation of the memory bus, MHz 14000
• Display (max. permission) 7680 x 4320
• Interface (slot) PCI-E x16 3.0
• Maksmalno of the connected monitors 4
• Support of several video cards NVIDIA NVLink 2-Way
• VR Support is
• Additional power 8+8 pin

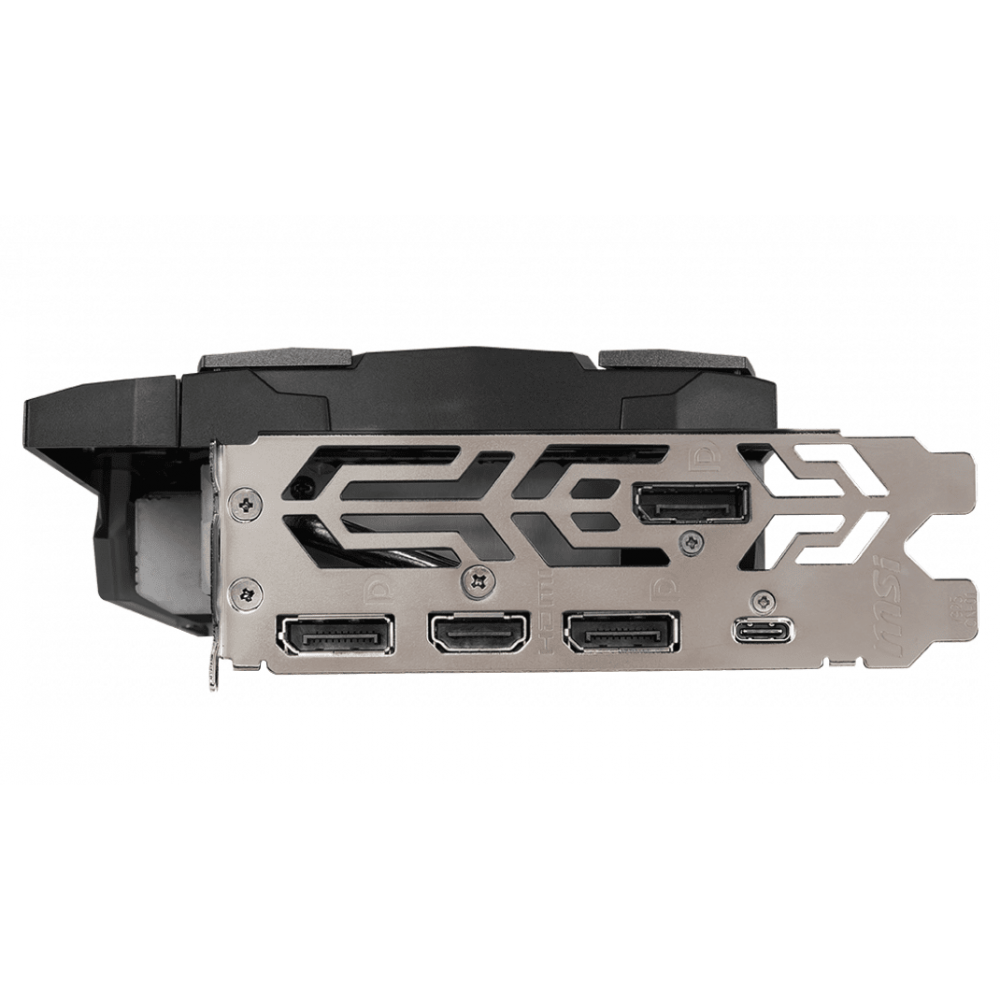

• DisplayPort (mini/micro) Port 3 of x DisplayPort v1.4
• HDMI (mini/micro) Port 1 of x HDMI v2.0b
• Port DVI there is no
• VGA (D-Sub) Port there Is no
• Cooling active (a radiator + the fan)
• Version of DirectX 12
• Cooling system TRI-FROZR
• Fans, piece 3
• Version of OpenGL 4.5
• Illumination case illumination
• Occupied slots (width) 2.7
• General height of a product (H), mm 55.6
• Total length of a product (L), mm 327
• General width of a product (W), mm 140
• Colour (main) Grey
• Weight, gram 1533
• packaging Type box
