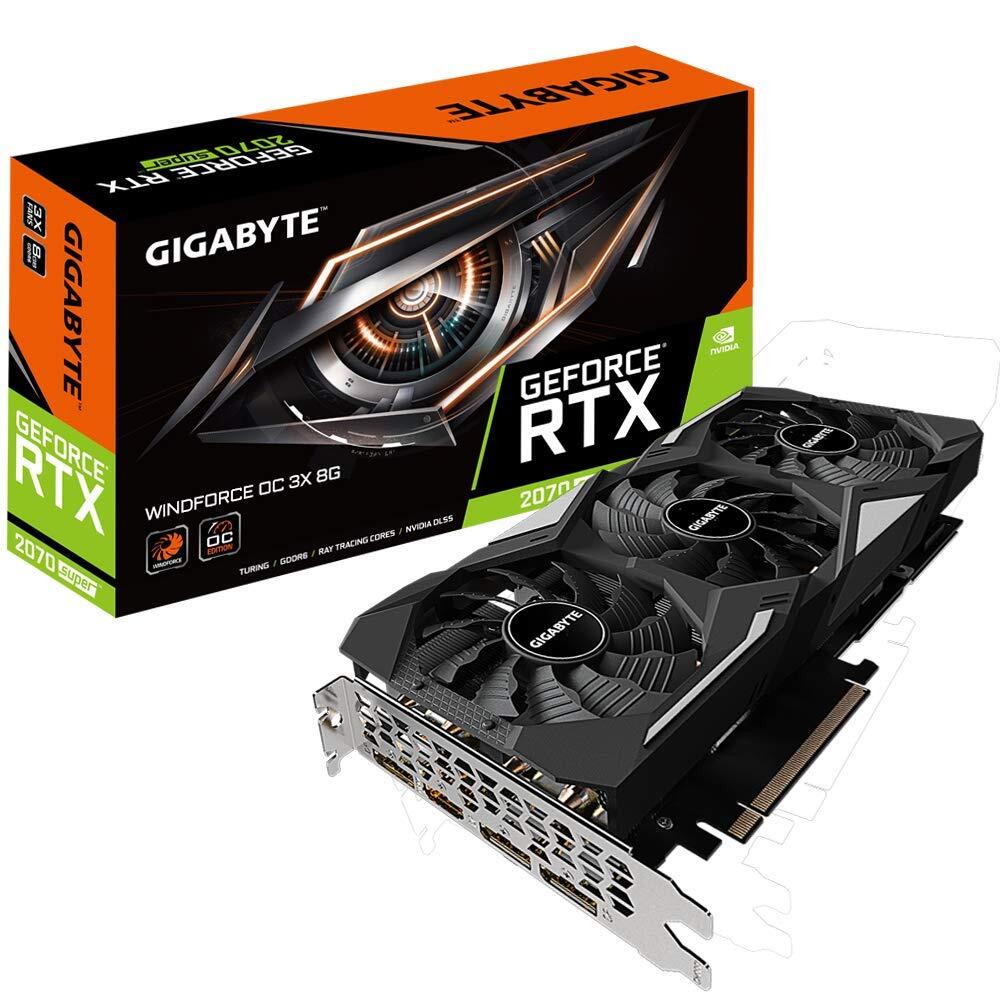

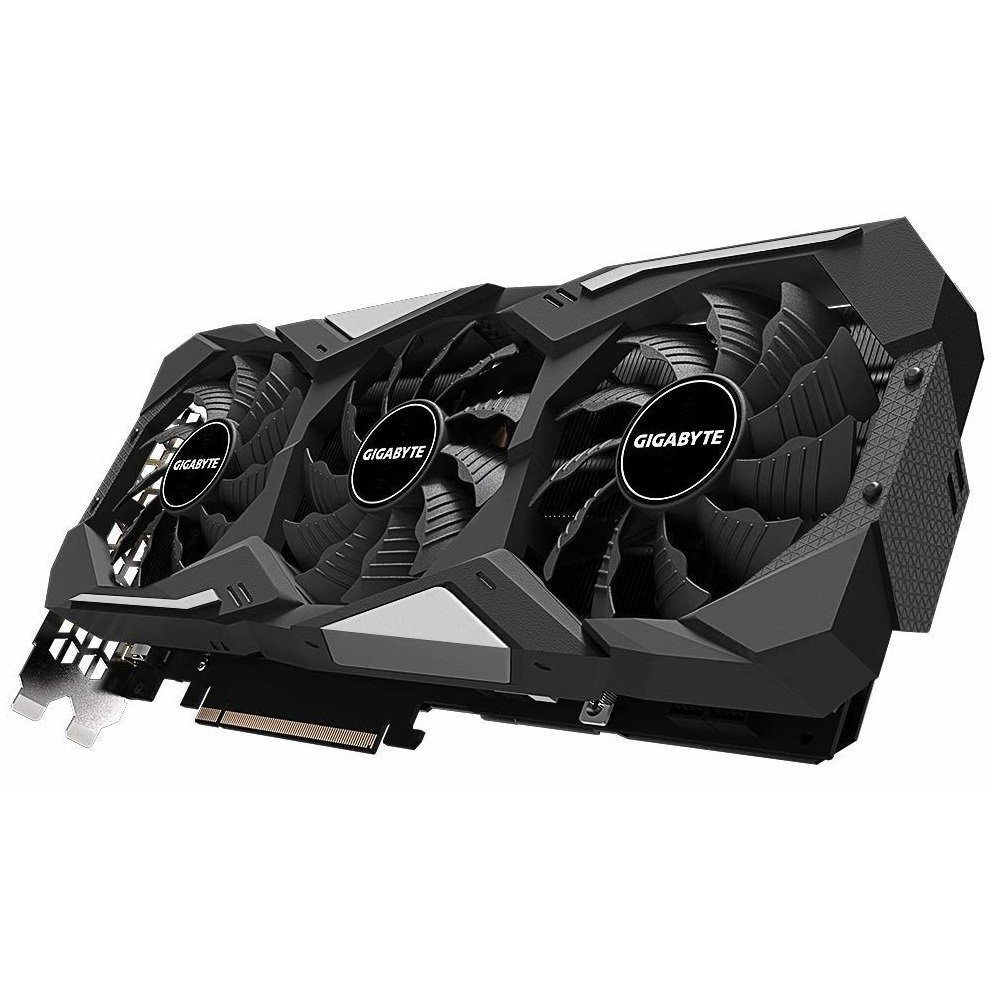

Video card Gigabyte GeForce RTX2070 Super Winforce OC 3X 8G (GV-N207SWF3OC-8GD)

Description Video card Gigabyte GeForce RTX2070 Super Winforce OC 3X 8G (GV-N207SWF3OC-8GD)

GeForce RTX 2070 SUPER WINDFORCE OC 3X 8G

• RAM GDDR6 8 Gbyte, the 256-bit interface of the memory bus
• WINDFORCE 3X Cooling system with the alternative scheme of rotation of fans
• Reliability and an extreme overkloking
• Protective metal plate

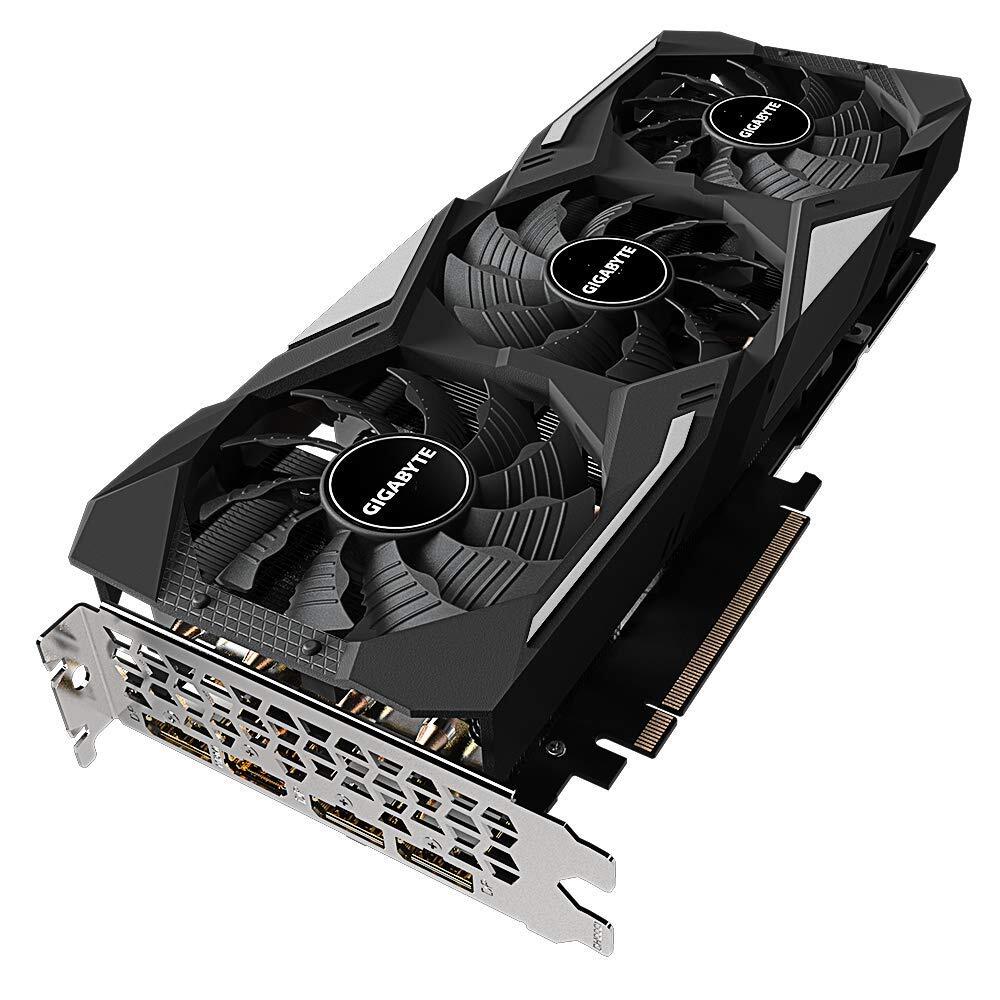

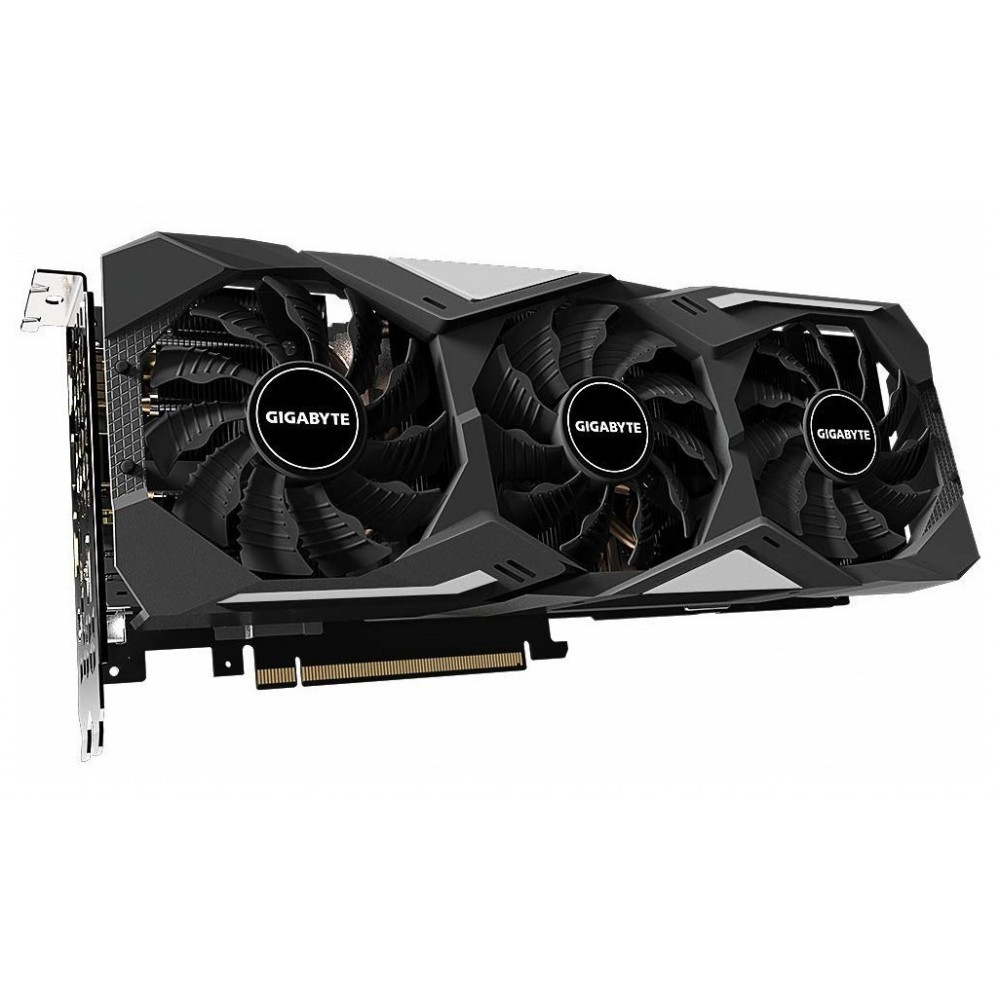

Windforce 3X Cooling system

by three 82-mm fans with a unique configuration of blades (the central fan rotates in the alternative direction) and six composite copper thermal tubes. Direct contact of thermal tubes and a sole of a radiator directly with GP and also 3D Active technology, provide effective heat extraction, the increased performance and comfortable temperature condition.

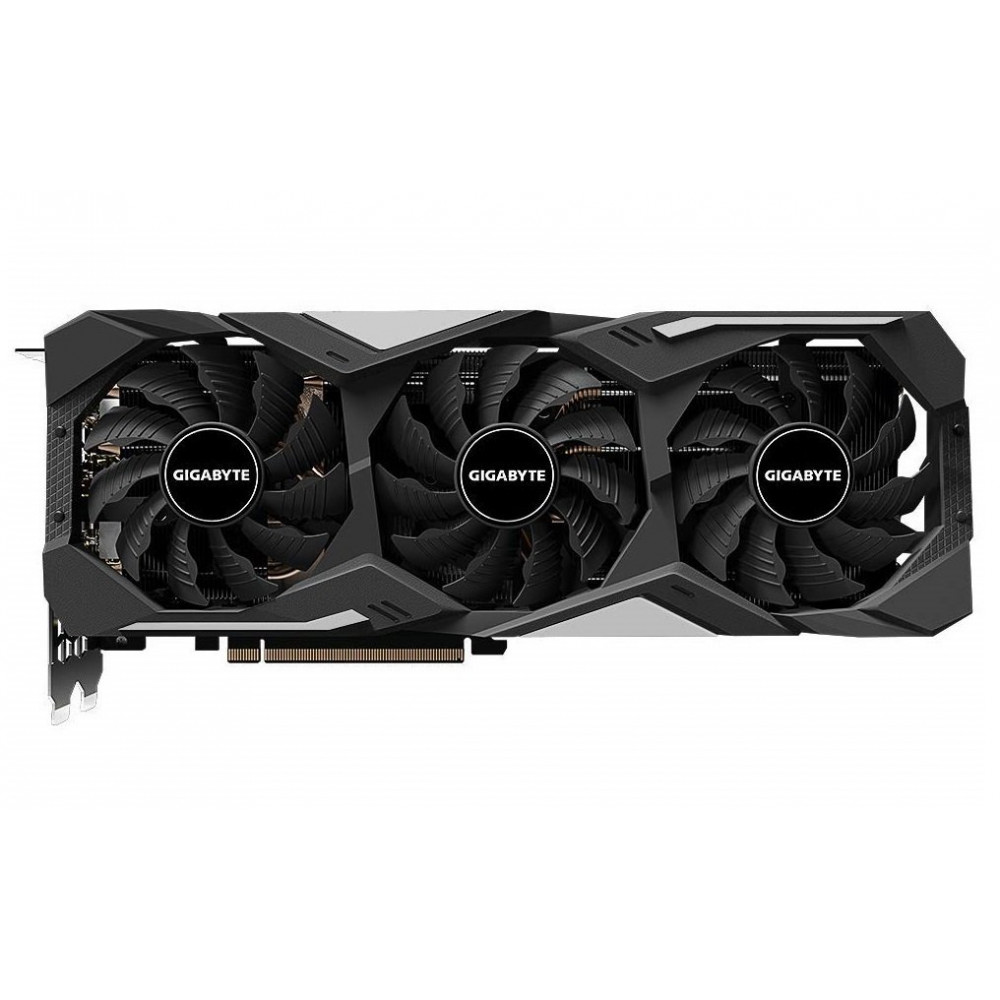

Alternative rotation of fans

Alternate Spinning technology Patented by Gigabyte — the unique solution which optimum distributes turbulent flows in relation to the cooling system on the basis of three fans. The biggest problem of similar systems — turbulence. If the rotation sense of fans matches, the probability of emergence of turbulent flows (turbulences of air masses between the next fans) is high that which reduce efficiency of the settlement scheme of the heat sink. Engineers of Gigabyte offered original option of interaction of three fans when the central fan rotates in the alternative direction. Thus, it is possible to optimize distribution of air flows between fans and to considerably reduce negative effect of turbulence.

Unique design of blades of fans

Air volume in the set zone is cut by blades of a special profile with finning which help to increase air flow pressure.

3D Active Fans

Means of 3D Active technology organized the semi-passive scheme cooling, fans remain switched off when GP is in a status of the lowered loading, servicing not resource-intensive applications. Thanking 3D Active поклонники of computer games can focus on game process as noise from the working cooling system of a graphics card completely is absent.

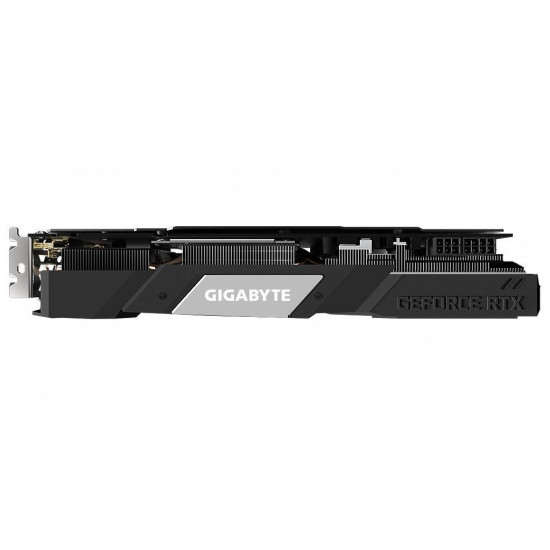

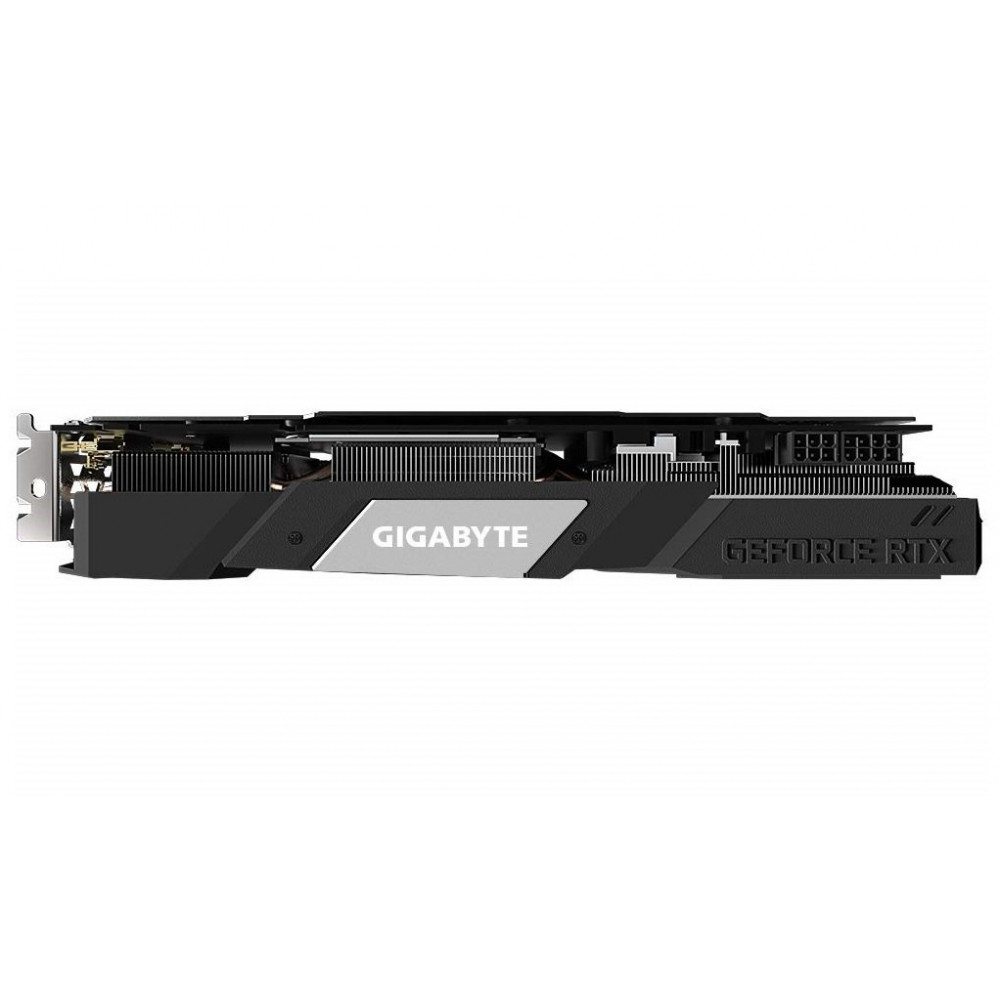

rmal tubes with direct contact

Basis of construct of the cooling system is formed by the radiator made of the purified copper which sole adjoins directly to GP crystal. Effective cooling of the video RAM is implemented by means of a metal plate of the considerable sizes which adjoins memory modules.

Composite heat-removing tubes

Composite thermal tubes provide a possibility of change of heat conductivity in the field of phase transitions and provide effective interaction of the selected couple of components which are capable to organize highly productive heatdispersion.

Extreme reliability and an overkloking

scheme Implemented in the module of conversion of supply voltages of a graphics card 8+2 phases, provides comfortable working conditions for field transistors, at the same time at the level of circuitry the protection against overheating and balancing of loading for each MOS-component is implemented. The basis of element base is supplemented by the throttles and condensers certified within the concept by Ultra Durable which show excellent performance and guarantee long service life of a product.

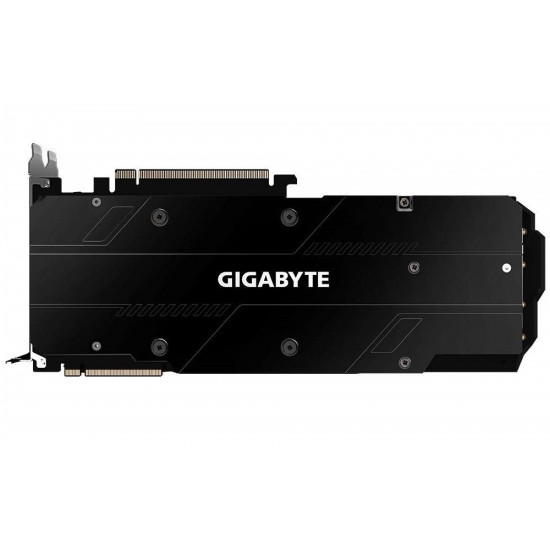

Protective metal plate

Back surface of the printed circuit board is spread with a metal plate which reliably protects construct in general and the components unsoldered on a payment in particular, from damages, for example, in case of falling of a product and also helps to minimize loads of a bend and torsion.

Power indicators

Built-in means of the notification about faults in supply circuits, the intelligent LED indicator will notify the player if for any reason the parameters of power of the bus PCI-E differ from regular.

nVidia NVLink Technology

Thanks to nVidia NVLink technology (nVidia SLI) which allows to integrate resources of two graphics cards on the basis of identical GP GeForce RTX by means of the jumper NVLink Bridge the enthusiasts have an excellent opportunity to gain unique experience — to involve mode 4K in games and to evaluate advantages of new products on the example of VR-applications. Besides, means of AORUS Engine signature NVLink Bridge Bridge can be integrated into the scheme of illumination of a system in general.

Modern intuitive interface of signature software provides with

quick access to settings of clock speed, supply voltages, to operation modes of fans depending on power consumption, and all this in real time proceeding from requirements of a specific game.

Characteristic Video card Gigabyte GeForce RTX2070 Super Winforce OC 3X 8G (GV-N207SWF3OC-8GD)

• Video card (model) NVIDIA GeForce RTX 2070 SUPER
• Processor (clock speed of GPU/Boost), MHz 1785
• Video card (memory size) 8 GB
• Video card (memory type) gDDR 6
• Bitness of the memory bus, bit 256
• Frequency of operation of the memory bus, MHz 14000
• Additional power 6+8 pin
• Version of DirectX 12
• Occupied slots (width) 2.7

• Class game
• Guarantee, month 36
• Technology NVIDIA ANSEL, NVIDIA G-Sync, NVIDIA NVLINK, NVIDIA PhysX
• Video card (model) NVIDIA GeForce RTX 2070 SUPER
• Processor (clock speed of GPU/Boost), MHz 1785
• Processor (technical process), nanometer 12
• Quantity of kernels of CUDA 2560
• Video card (memory size) 8 GB
• Video card (memory type) gDDR 6
• Bitness of the memory bus, bit 256
• Frequency of operation of the memory bus, MHz 14000
• Display (max. permission) 7680 x 4320
• Interface (slot) PCI-Express x16 3.0
• Maksmalno of the connected monitors 4
• Support of several video cards NVIDIA NVLink 2-Way
• VR Support is
• Additional power 6+8 pin
• DisplayPort (mini/micro) Port 3 of x DisplayPort v1.4
• HDMI (mini/micro) Port 1 of x HDMI v2.0b
• Port DVI there is no
• VGA (D-Sub) Port there Is no
• Cooling active (a radiator + the fan)
• Version of DirectX 12
• Cooling system Gigabyte Windforce 3X
• Fans, piece 3
• Version of OpenGL 4.5
• Illumination is not present
• Occupied slots (width) 2.7
• General height of a product (H), mm 50
• Total length of a product (L), mm 286
• General width of a product (W), mm 114
• Colour (main) Black
• packaging Type box
