Video card GIGABYTE GeForce RTX 2060 SUPER WINDFORCE 8G (GV-N206SWF2-8GD)

Description Video card GIGABYTE GeForce RTX 2060 SUPER WINDFORCE 8G (GV-N206SWF2-8GD)

NVIDIA TURING

Video card GeForce RTX on architecture of the graphic processor Turing and absolutely new RTX platform. It by 6 times increases performance in comparison with video cards of the previous generation and provides a possibility of ray tracing in real time and artificial intelligence in games.

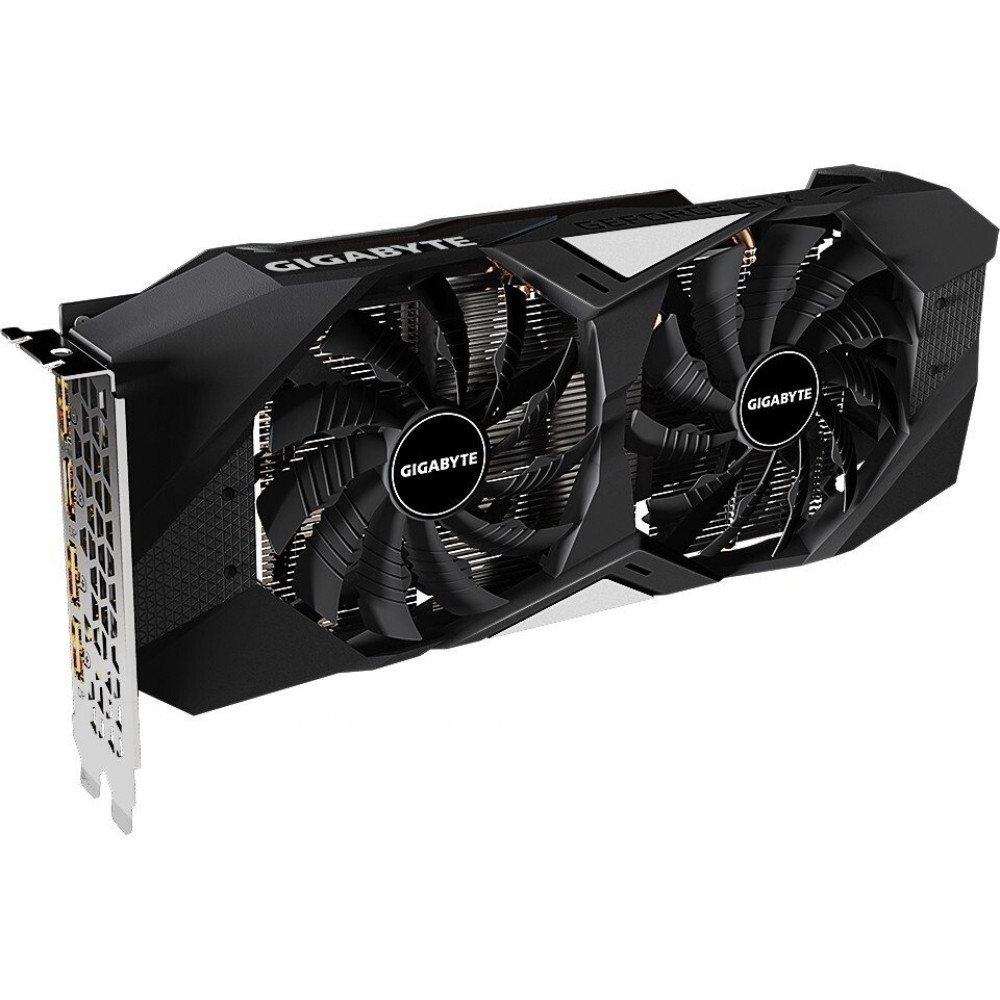

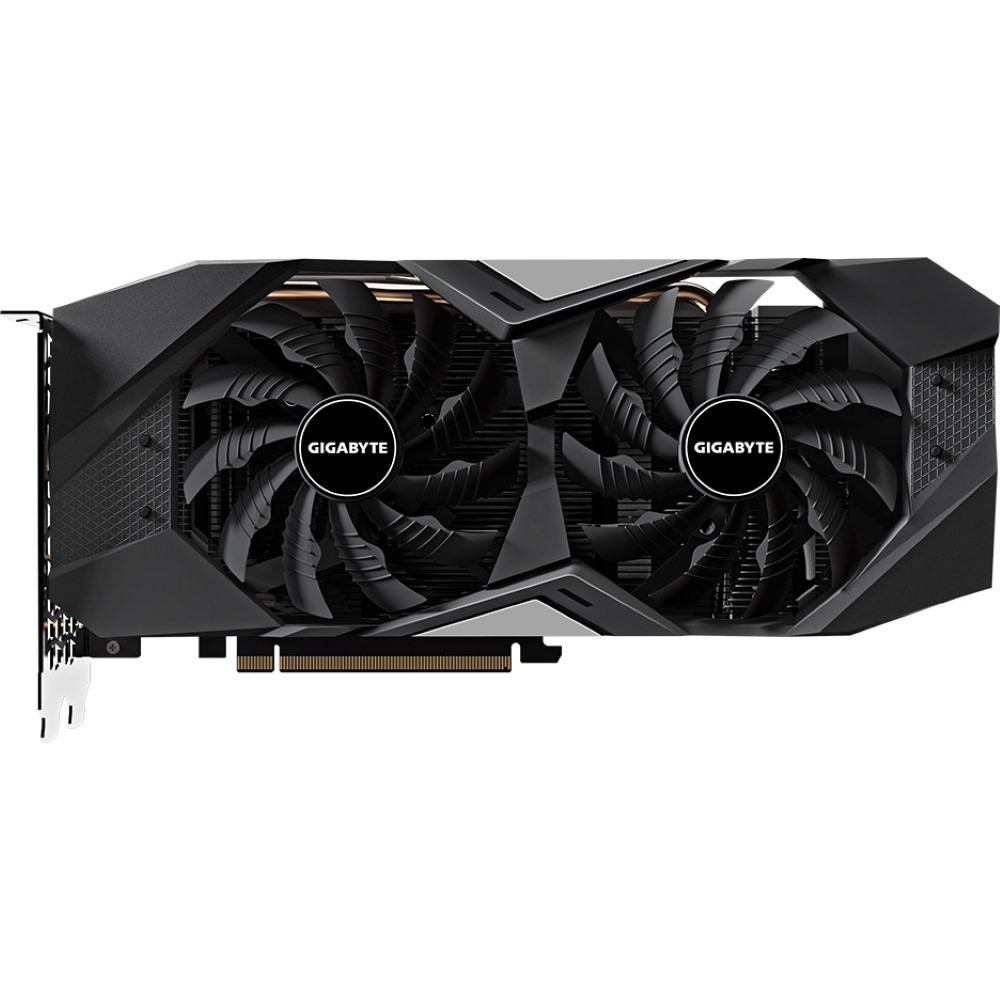

Cooling system

Windforce 8G proposes the universal solution for cooling of all key components of a graphics card. Appropriate cooling is implemented not only for the graphic processor, but also for video memory and a power supply subsystem, thus, stability of work of a product in any mode, including acceleration, and long service life is provided. Windforce stack as a part of two 100-mm fans is the most advanced and innovative scheme for cooling thanks to which the graphics card carries out objectives in the most comfortable temperature conditions.

Alternative rotation of fans

Alternate Spinning technology Patented by Gigabyte — the unique solution which optimum distributes turbulent flows in relation to the cooling system on the basis of two fans. The biggest problem of similar systems — turbulence. If the rotation sense of fans matches, the probability of emergence of turbulent flows (turbulences of air masses between the next fans) is high that which reduce efficiency of the settlement scheme of the heat sink. Engineers of Gigabyte offered original option of interaction of fans when fans rotate in the alternative direction. Thus, it is possible to optimize distribution of air flows between fans and to considerably reduce negative effect of turbulence.

Unique design of blades of fans

Air volume in the set zone is cut by blades of a special profile with finning which help to increase air flow pressure. Means of 3D Active technology organized the semi-passive scheme cooling, fans remain switched off when GP is in a status of the lowered loading, servicing not resource-intensive applications. Thanking 3D Active поклонники of computer games can focus on game process as noise from the working cooling system of a graphics card completely is absent.

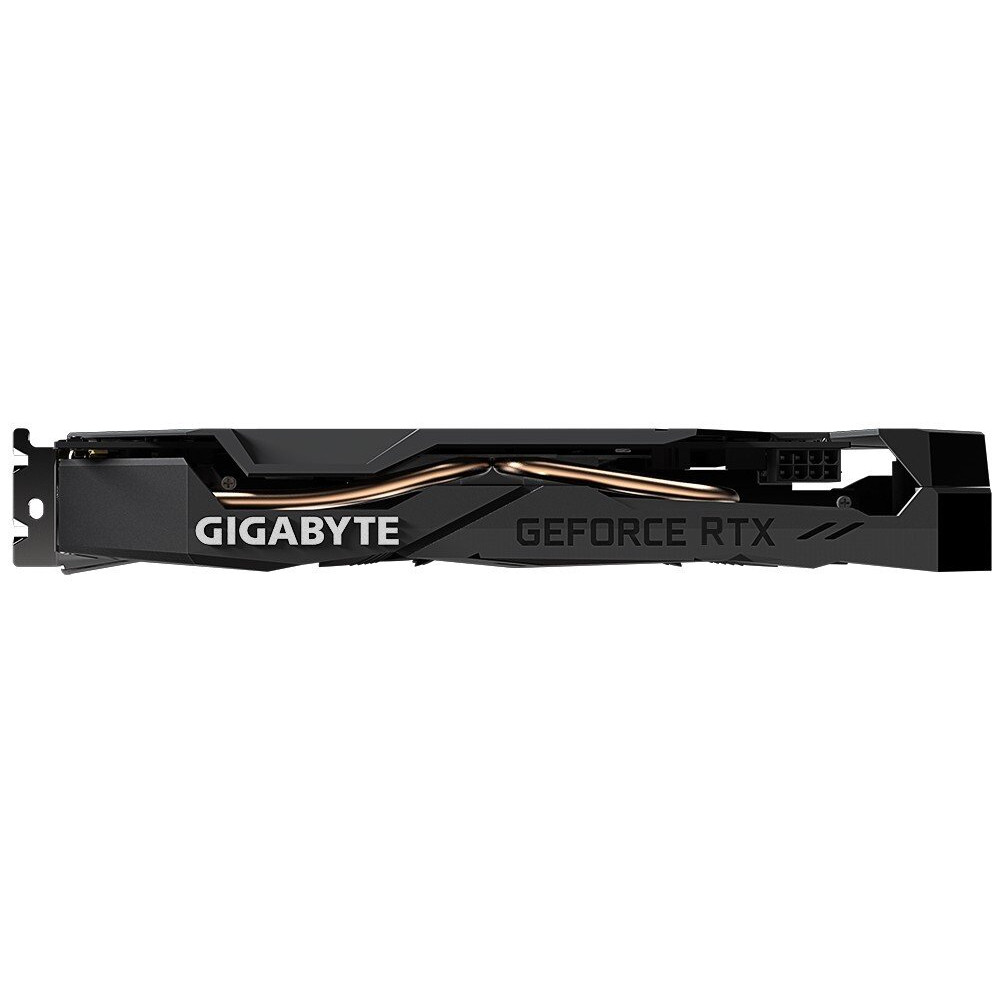

Thermal tubes with direct contact

Basis of construct of the cooling system is formed by the radiator made of the purified copper which sole adjoins directly to GP crystal. Effective cooling of the video RAM is implemented by means of a metal plate of the considerable sizes which adjoins memory modules. Composite thermal tubes provide a possibility of change of heat conductivity in the field of phase transitions and provide effective interaction of the selected couple of components which are capable to organize highly productive heatdispersion. Completely automated production guarantees high quality of printed circuit boards and eliminates possibility of sharp overhangs of connectors for soldering which are on the surface of the printed circuit board. The thought-over design prevents your hands from cuts or inadvertent damages of components during creation of a system.

Characteristic Video card GIGABYTE GeForce RTX 2060 SUPER WINDFORCE 8G (GV-N206SWF2-8GD)

• Video card (model) NVIDIA GeForce RTX 2060 SUPER
• Processor (clock speed of GPU/Boost), MHz 1650
• Video card (memory size) 8 GB
• Video card (memory type) gDDR 6
• Bitness of the memory bus, bit 256
• Frequency of operation of the memory bus, MHz 14000
• Additional power 8 pin
• Version of DirectX 12
• Occupied slots (width) 2

• Class game
• Guarantee, month 36
• Technology NVIDIA G-Sync, NVIDIA GameWorks, NVIDIA VRWorks
• Video card (model) NVIDIA GeForce RTX 2060 SUPER
• Processor (clock speed of GPU/Boost), MHz 1650
• Processor (technical process), nanometer 12
• Quantity of kernels of CUDA 2176
• Video card (memory size) 8 GB
• Video card (memory type) gDDR 6
• Bitness of the memory bus, bit 256
• Frequency of operation of the memory bus, MHz 14000
• Display (max. permission) 7680 x 4320
• Interface (slot) PCI-E x16 3.0
• Maksmalno of the connected monitors 4
• VR Support is
• Power consumption, span do not have W 550
• Additional power 8 pin

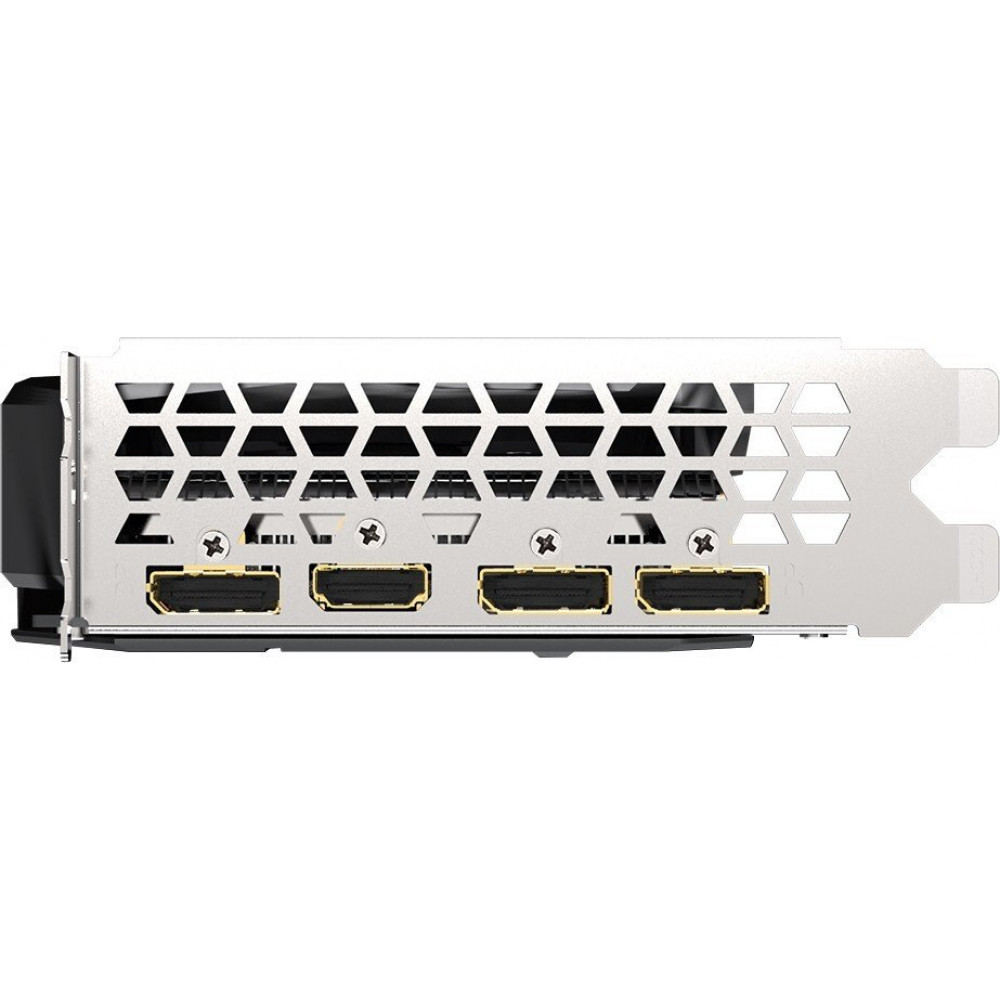

• DisplayPort (mini/micro) Port 3 of x DisplayPort v1.4
• HDMI (mini/micro) Port 1 of x HDMI v2.0b
• Port DVI
• VGA (D-Sub) Port there Is no
• Cooling active (a radiator + the fan)
• Version of DirectX 12
• Cooling system Gigabyte Windforce 2X
• Fans, piece 2
• Version of OpenGL 4.5
• Illumination is not present
• Occupied slots (width) 2
• General height of a product (H), mm 40
• Total length of a product (L), mm 265
• General width of a product (W), mm 121
• Colour (main) Black
• packaging Type box
• Complete set (cart-ny of change in different deliveries) 1 x a compact disk with drivers
