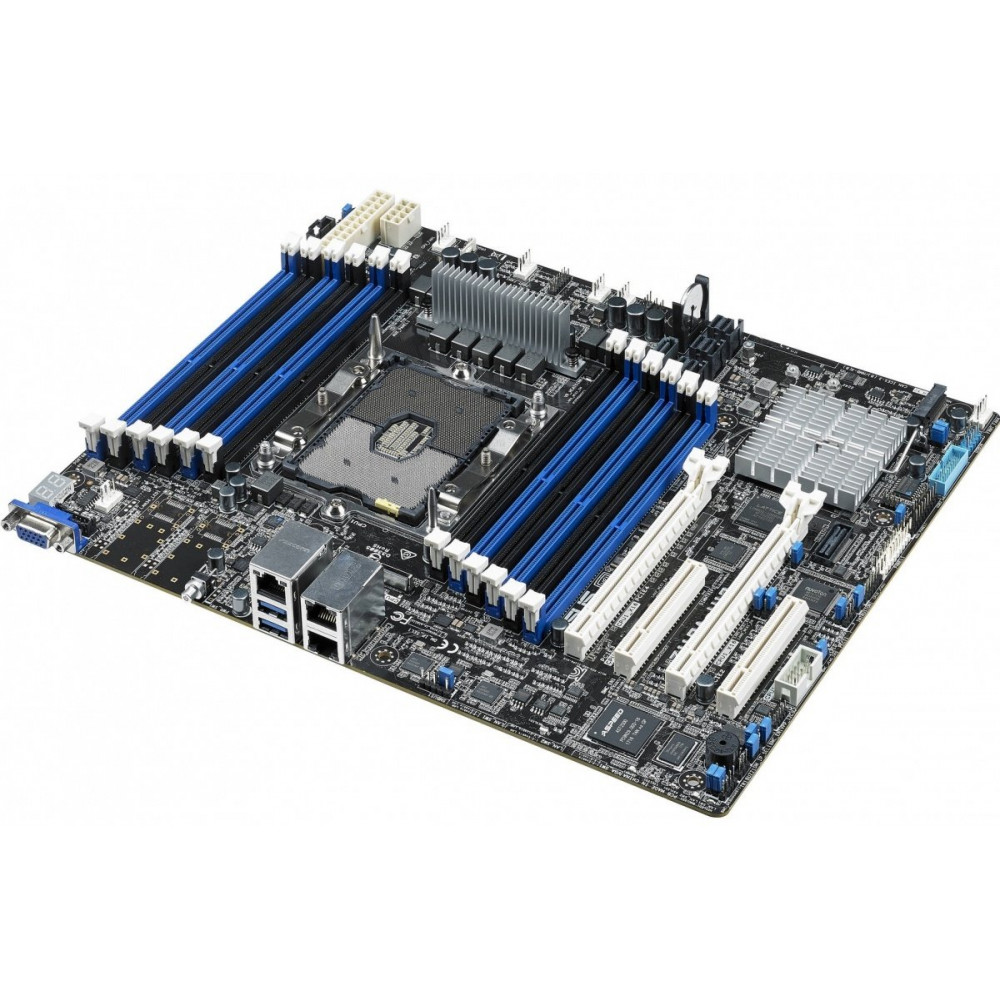

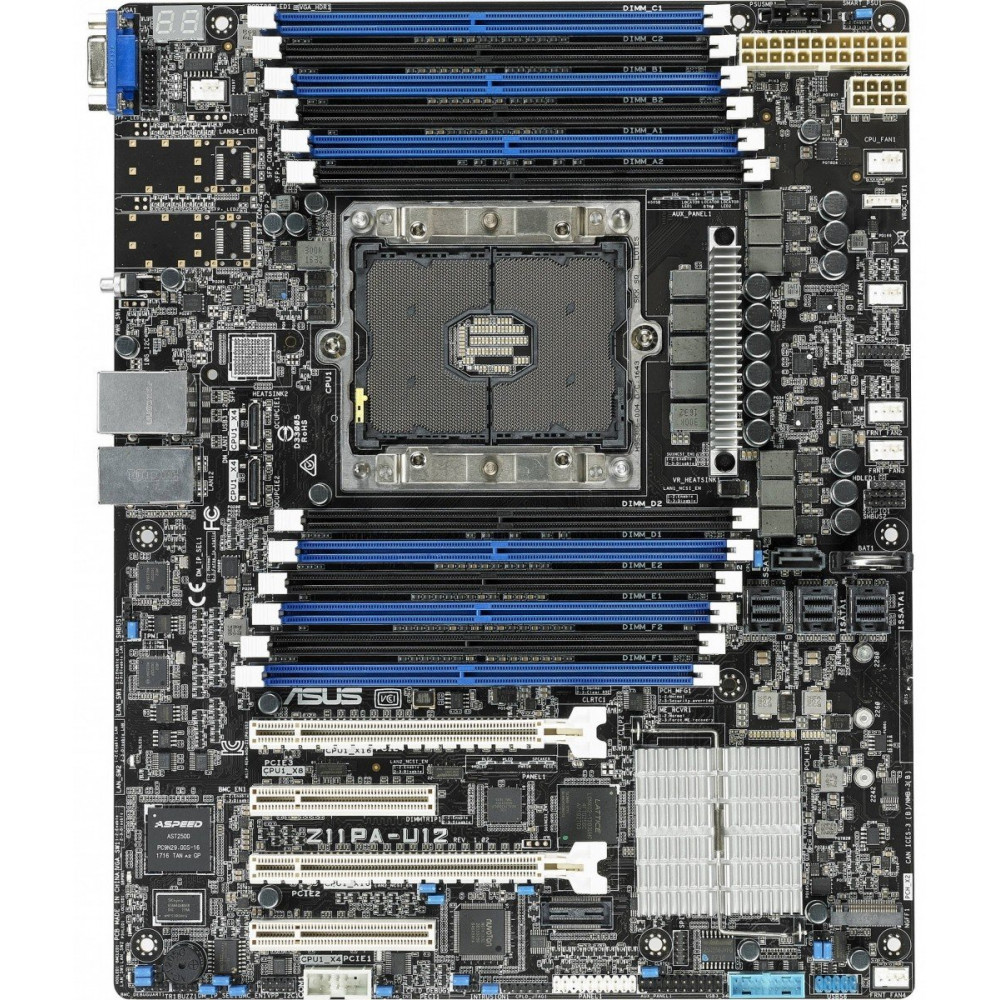

Description Motherboard server ASUS Z11PA-U12

Server motherboard for processors of Xeon with 12 slots of DIMM

Intel Xeon Scalable Platform
12 slots of DIMM for memory modules
Two ports OCuLink for NVMe-drives
Support up to 13 drives with the SATA interface of 6 Gbps
Modern administrative tools: the ASMB9-iKVM module and the software of ASUS Control Center
Power connectors ProCool

12 slots of DIMM for memory modules
Main advantage of the server Z11PA-U12 board is existence of 12 slots of memory at once that is record value for ATX form factor devices. Also she allows to install two two-slot video cards at once.

Two ports OCuLink for NVMe-drives
Server Z11PA-U12 board supports by

OCuLink interface for high-speed connection of two NVMe-devices.

Support up to 13 drives with the SATA interface of 6 Gbps
Three connectors of mini-SAS of HD allow to connect to the Z11PA-U12 board to 12 drives with the SATA interface 6 Gbps. In addition there is a separate 7-contact SATA connector for one more SATA device, for example the optical drive.

Full solution for management of IT infrastructure
Module of ASUS ASMB9-iKVM is an effective solution for remote control of the server through any of popular web browsers which provides the interface, independent of the operating system and the platform, for performing such actions as update of a firmware, the adjustment of fans, record of the BSOD screen, etc. Besides, the ASUS company offers the software of ASUS Control Center – a convenient control facility computer infrastructure on the basis of workstations, servers and digital boards of production of ASUS. Among its opportunities there is following: the BIOS update without reset of the computer, remote monitoring of a set of computers via mobile devices, software deployment by one mouse click, etc. Learn more about ASUS Control Center.
Power connectors ProCool Special power connectors implemented on the Z11PA-U12 board provide to

with
reliable connection of cables, reduced resistance and the improved heat dissipation.

Up to 1.5 TB random access memory: 12 slots with support of the DDR4-2666 modules with a capacity of 128 GB everyone.

Hybrid connector M.2 for one device of a form factor 2242, 2260, 2280. The PCIe and SATA modes are supported.

Characteristic Motherboard server ASUS Z11PA-U12
Article: span do not have Z11PA-U12

Form factor ATX

Processor (socket type) Intel Socket 3647

Random access memory of DDR4 (quantity of slots), piece 12

Random access memory of DDR3 (quantity of slots), piece

Random access memory of DDR2 (quantity of slots), piece there is no

Chipset Intel C621

Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet

Wireless interfaces (Wi-Fi) there Is no

Model of the built-in video card Aspeed AST2500

Assignment for servers

Form factor ATX

Guarantee, month. 36

Processor (socket type) Intel Socket 3647

Processor (quantity of socket) 1

Random access memory of DDR4 (quantity of slots), piece 12

Random access memory of DDR3 (quantity of slots), piece is not present

Random access memory of DDR2 (quantity of slots), piece there is no

Random access memory (number of channels) 2nd channel

Chipset Intel C621

PCI Express Slot (PCI-E x16 (x16)), span do not have piece 1 of x PCI-E x16 (x16) of v3.x

PCI Express Slot (PCI-E x16 (x8)), piece 1 of x PCI-E x16 (x8) of v3.x

PCI Express Slot (PCI-E x16 (x4)), piece

Slot of PCI Express (PCI-E x8), piece 1 of x PCI-E x8 v3.x (x4), 1 x PCI-E x8 v3.x (x8)

Slot of PCI Express (PCI-E x4), piece there is no

Slot of PCI Express (PCI-E x1), piece there is no

Slot of PCI, piece there is no

AGP Slot there is no

Type-C/Thunderbolt 3 USB 3.1 Port there Is no

Gen 2 Type-A/Type-B/Type-CTM USB 3.1/3.2 Port (up to 10Gbps) there is no

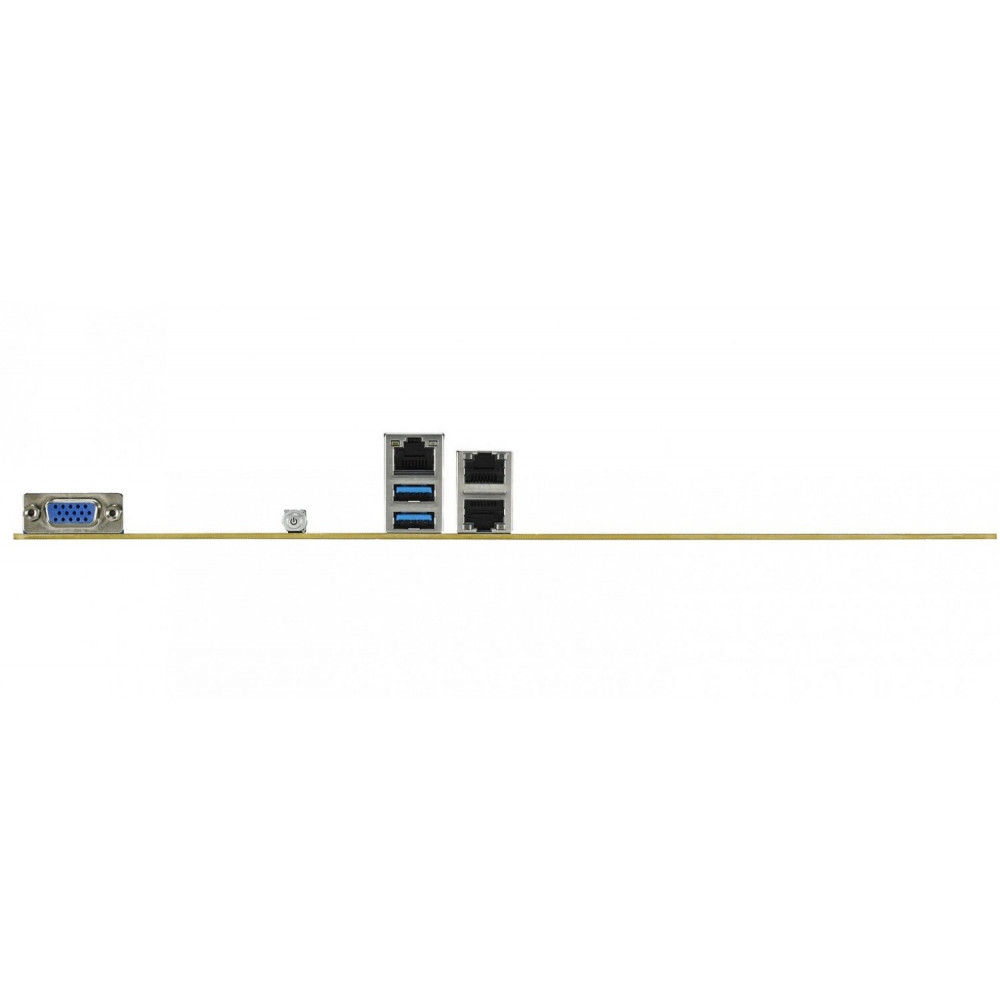

Gen 1 Type-A/Type-B/micro USB USB 3.0/3.1/3.2 Port (up to 5Gbps) 2 x USB 3.0/3.1 of Gen 1 Type-A, 2 x span do not have USB 3.0/3.1 Gen 1 Type-A (on a payment, for a frontal output)

Type-A/Type-B/mini USB/micro USB USB 2.0 Port (up to 480Mbps) 2 x USB 2.0 Type-A (on a payment, for a frontal output)

VGA (D-Sub) Port 1 x VGA

Port DVI, piece

HDMI (mini/micro) Port there Is no

Thunderbolt Port there is no

DisplayPort (mini/micro) Port Is not present

PS/2 Port, piece is not present

COM (RS-232) Port 1 (on a payment, for a frontal output)

Port (IEEE 1394) is not present

LPT Port (IEEE 1284), piece is not present

Connector of the TPM module, piece 1 (on a payment)

Number of SATA3 ports (6gbit/c), piece 13

Number of SATA2 ports (3gbit/c), piece is not present

Number of SATA Express ports (to 10gbit/c), piece is not present

Mini PCI Express (Mini PCI-E, span do not have Socket 3), piece 1 x M.2

Support of program RAID RAID 0, RAID 1, RAID 10, RAID 5

eSATA Port

Quantity of eSATA, piece. do not have

Number of IDE ports there is no

Slot for FDD there is no

Network connection (LAN RJ-45), Mbps 10/100/1000 Ethernet

Network connection (quantity of LAN RJ-45), Mbps 3

LAN controller Model Intel I210AT, Mgmt of LAN

Wireless interfaces (Wi-Fi) there Is no

Fastening for antenna Wi-Fi there is no

Wireless interfaces (Bluetooth/NFC) there is no

Built-in sound processor there is no

Multichannel sound there Is no

Optical output (S/PDIF) there is no

Built-in video is

Model of the built-in video card Aspeed AST2500

Cooling of the south bridge passive (radiator)

General height of a product (H), mm 305

General width of a product (W), mm 244

Colour Blue darkly blue lue, Dark gray ules wet asphalt anthracite

Main power connector 24 - pin

Number of power connectors of coolers (total with CPU Fan), 6
