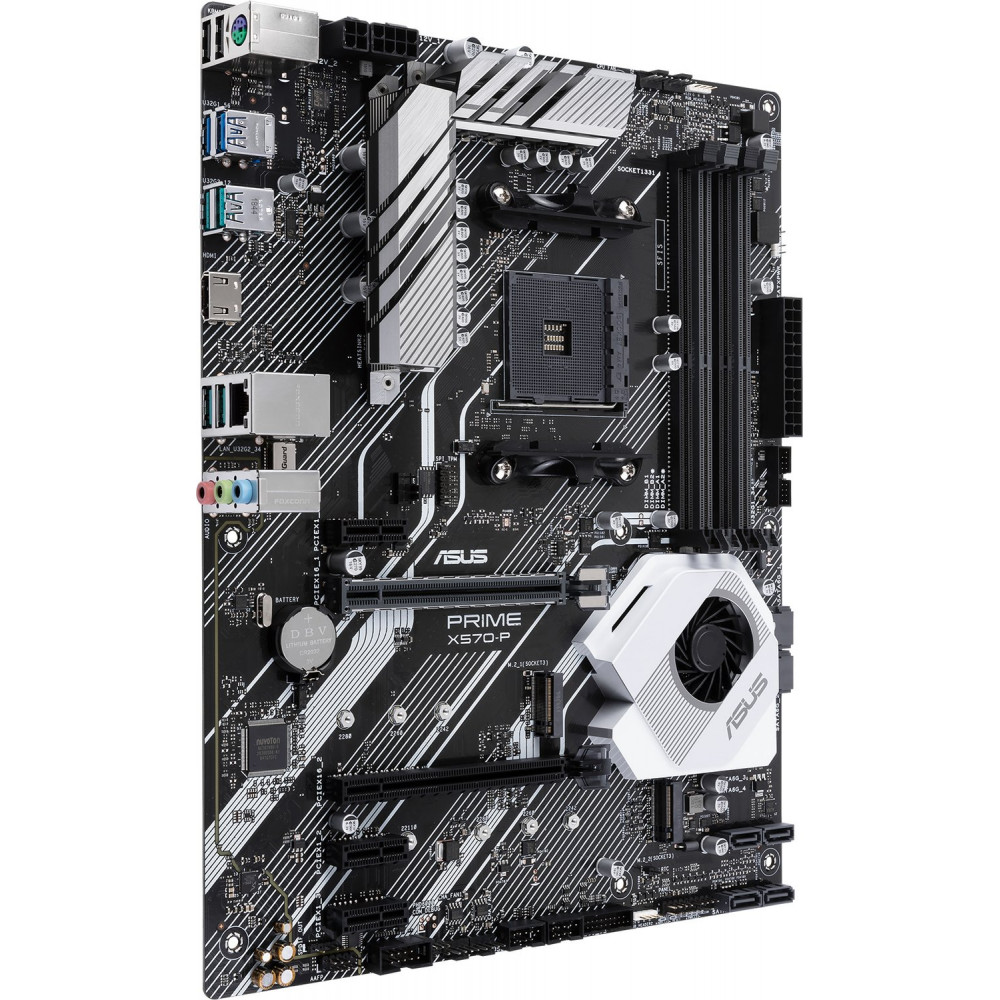

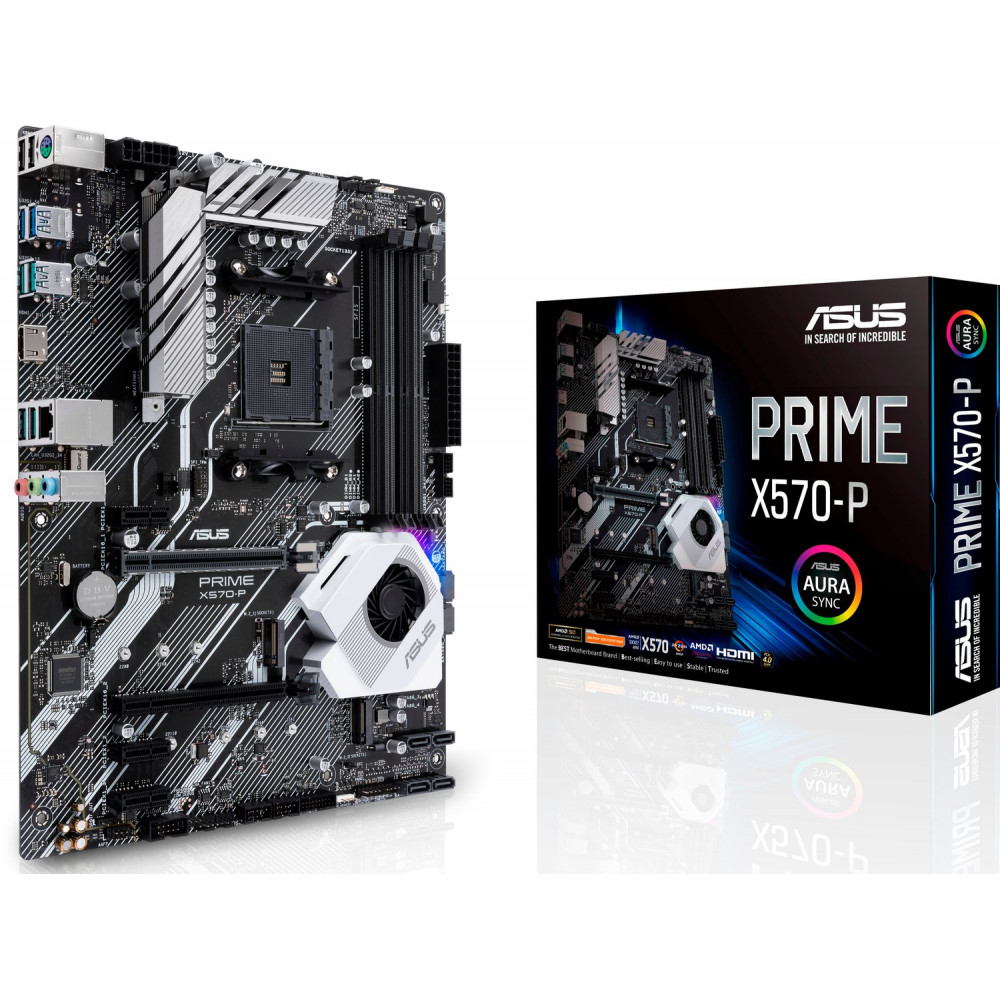

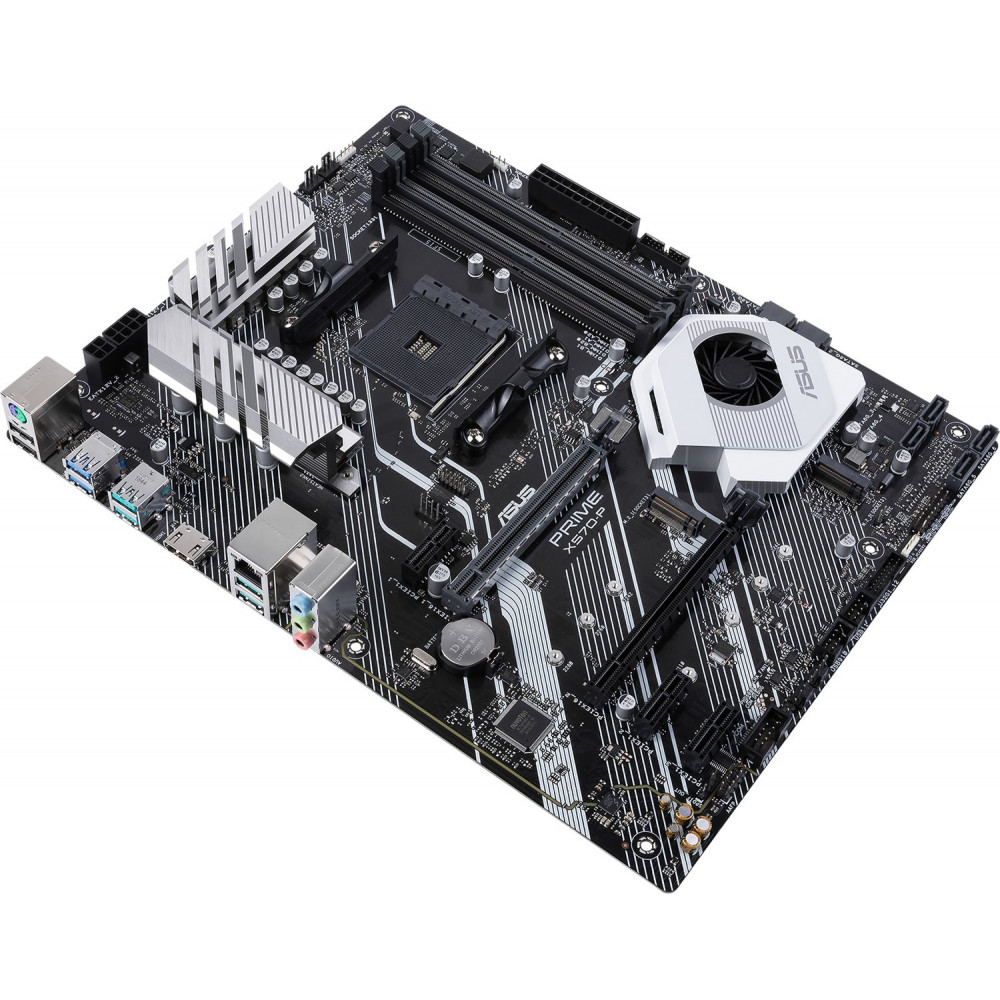

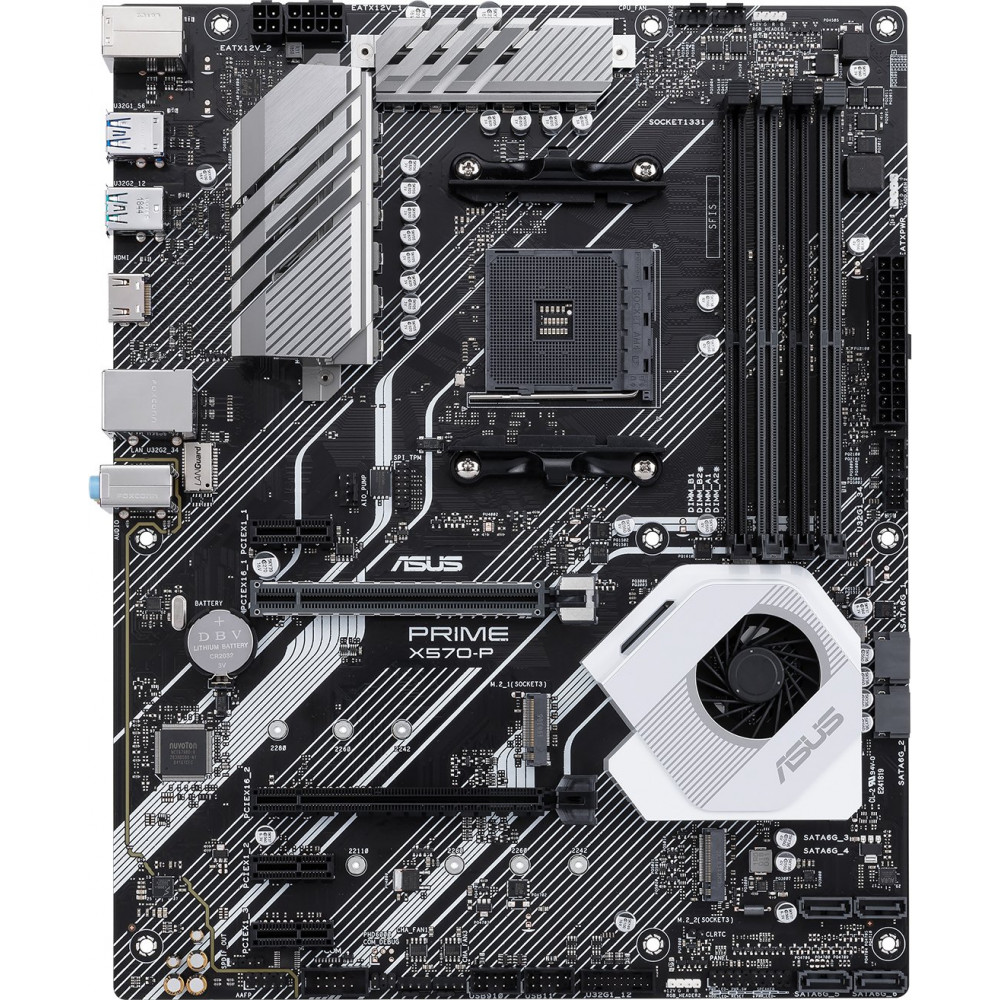

Maternal ASUS PRIME X570-P board

Reliable base for the PC

Stable power, easy cooling in setup, modern interfaces – motherboards of the Prime X570 series offer the user all necessary fundamental things which will allow to use with the maximum effect the latest Ryzen processor in daily work.

ProCool Connectors

8- and 4-contact ProCool connectors connect the 12-voltny bus of the power supply directly to the processor. Thanks to integral, but not hollow contacts they are capable to carry current of bigger force, than normal.

Power DrMOS modules

In the Prime X570-P power system implemented according to the scheme of 8+4 phases of power the power MOS Dr. modules, each of which includes the driver and also MOSFET keys of the upper and lower shoulder. Thanks to such component integration the increased power system efficiency is reached.

Floatable throttles

Powerful power system implemented on payments of the Prime X570 series for support of the latest AMD processors requires appropriate cooling therefore on its components the big radiator with the highly effective thermointerface is used.

Durable condensers

In motherboards of ASUS perfect condensers which are capable to work longer and under more difficult conditions, than standard.

6-layer printed circuit board

Multilayered pc board design facilitates heat extraction from components, thereby increasing the frequency potential of the processor at acceleration.

Two connectors M.2 (PCIe 4.0)

Thanks to existence of two connectors M.2 designed for format devices up to 22110 and working in the PCIe 4.0 mode, the user can not only connect modern solid-state drives at a high speed, but also integrate them in the RAID.

Strengthened fastening of slots of PCIe

SafeSlot is the design of slots of PCIe developed by ASUS which differs in the improved durability and provides the strengthened video card clip. Such slot is made with use of new process of formation with an insert during which the metal framework is integrated into it. It strongly fixes the slot on the motherboard by means of additional points of soldering.

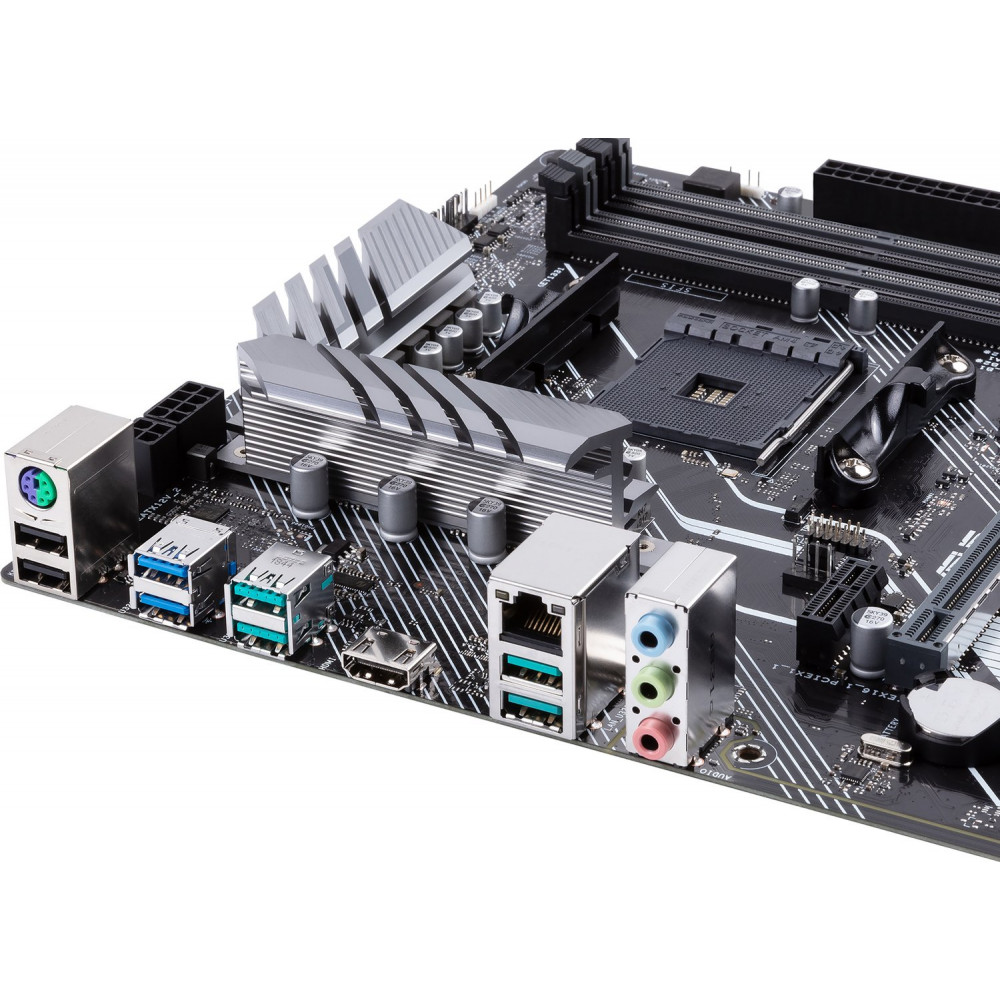

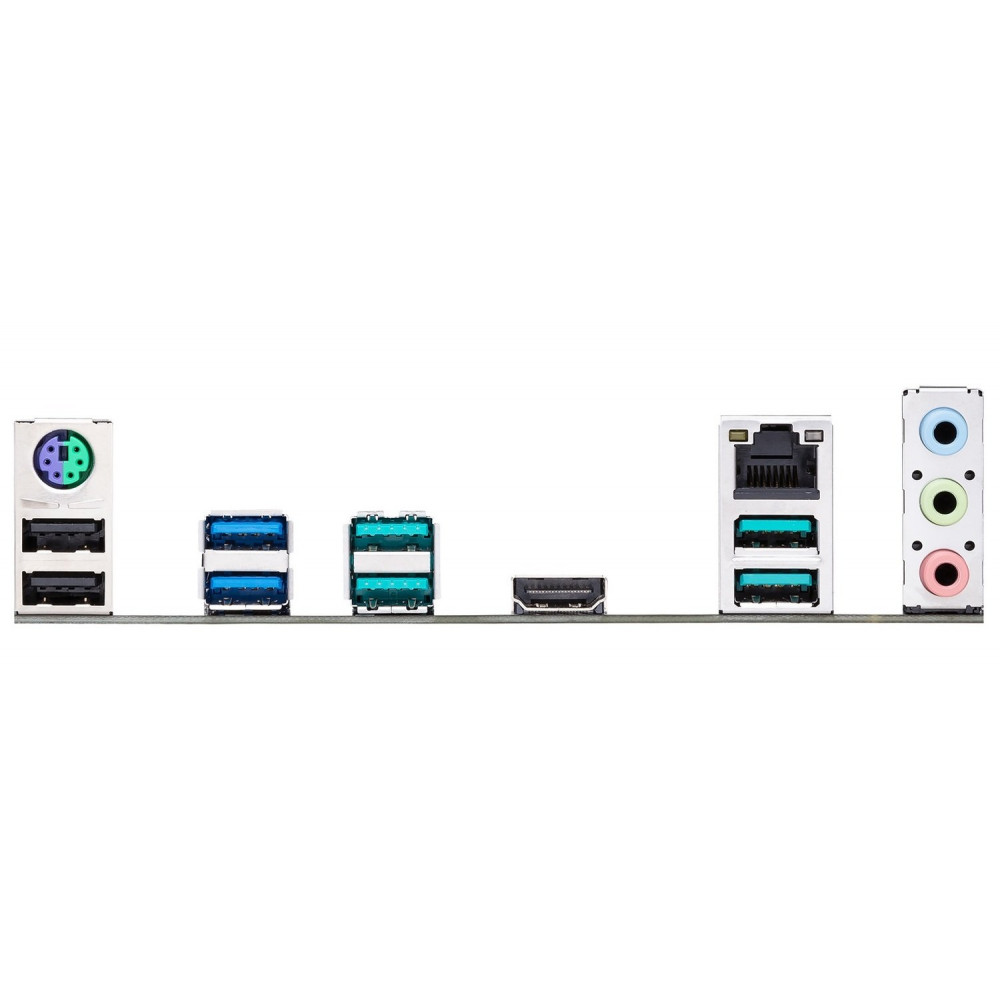

High-speed ports USB 3.2 Gen 2 (10 Gbps)

Motherboard is equipped with the Gen 2 Type-A USB 3.2 port guaranteeing backward compatibility with the devices possessing the USB interface of the previous versions and the maximum throughput of 10 Gbps. (*chtoba the USB ports close to port of a wired network worked at speed of USB of 3.2 Gen of 2, the AMD Ryzen processor of third generation is required.)

LANGuard Technology

Connector of a wired network on this motherboard is equipped with special protection against static and differences of tension.

Tracking several thermal sensors

Each ventilatory connector can obtain data from several (to three) thermal sensors. Moreover, the Fan Xpert 4 utility allows to trace temperature of compatible video cards of ASUS and to use it as basis for adjustment of system fans.

I Will corrode pumps of complex SVO

I Will corrode for non-attended systems of water cooling with adjustment on PWM/tension.

Each ventilatory connector of a payment supports by

automatic detection of type of the fan (with adjustment on PWM or tension).

Automatic protection

by

for protection of all ventilatory connectors against overheating and overcurrent condition.

chipset Radiator with the fan

Bus PCIe 4.0 increases the volume of data processed by a chipset that finally leads to increase in its temperature. That is why on the Prime X570-P board the chipsetny radiator is complemented with the separate fan.

Active cooling includes the components given below.

1. Air duct. Specially developed air duct helps the fan to create static pressure and to strengthen the air flow passing between radiator fins.
2. Radiator with edges. Radiator fins have such density at which the maximum area of heatdispersion and low resistance to the coming-out air is provided.
3. Special Delta Superflo fan. The quiet fan which is specially manufactured for this payment has the high-strength bearing with nominal durability (L10 *)

Fascinating sounding

Fascinating sounding the Built-in audio system on the basis of the codec of Realtek forms the Basis of the audio system of the Prime X570-P motherboard the Realtek S1200A codec which has excellent characteristics. So, the ratio makes a signal noise of this audiosolution 108 dB for a linear stereooutput and 103 dB for a linear input.

Flexible setup

In the interface of a firmware of motherboards of the Prime X570 series and in the utilities attached to them is available a set of in-out parameters by means of which it is possible to make setup and optimization of the computer that that worked exactly as it is necessary for you.

Low energy consumption

Special EPU processor automatically determines extent of loading of a system and optimizes its energy consumption. It supports a particular treatment with the lowered energy consumption.

Motherboards of the Prime X570 series are allocated with

convenient in use and the functional UEFI BIOS interface.

Armoury Crate

Armoury Crate Application represents uniform control center of products of ASUS. The different settings connected with illumination and hardware parameters are presented in its intuitive interface. Besides, there are special sections for viewing news from ASUS and registration of the bought devices.

Aura Illumination

give to the computer identity and brightness, this motherboard allows to connect a LED tape * which work can be synchronized with Aura-compatible devices of ASUS (Aura Sync technology). (* It is possible to connect LED tapes of format 5050 RGB with current to 3 A to the RGB connector (12 V). The maximum brightness is reached when length of a tape does not exceed 3 m ** LED tapes and Aura-compatible devices are on sale separately.)

Addressed connector of the second generation

Prime X570-P Motherboard possesses the connector for connection of LED tapes and other devices with the addressed illumination of the second generation. Their feature is that the software can automatically adapt visual effects according to specific quantity of LEDs. Besides, the connector is backward compatible with already released devices allocated with Aura illumination.

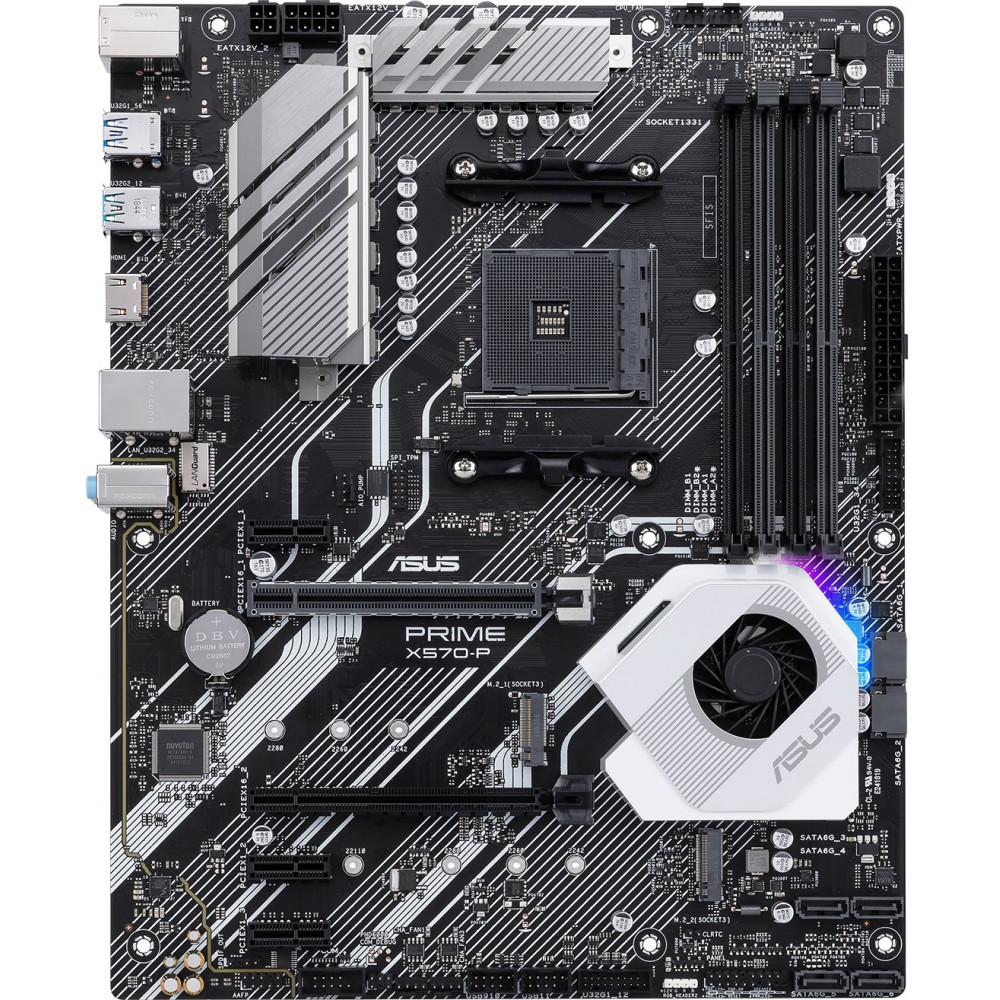

LED illumination of a chipset

This motherboard is supplied with colourful LED illumination with different visual effects.

Chipset of AMD X570 supports by

16 PCIe 4.0/3.0 lines, Gen2 USB 3.2 ports (10 Gbps) and SATA of 6 Gbps for connection of peripheral devices and also provides ample opportunities on acceleration of AMD processors for the AM4 connector. Besides, it is optimized under use of the multiprocessor graphic configurations collected on NVIDIA SLI or AMD CrossFireX technologies.

AM4 Connector for AMD processors

This motherboard is compatible

AMD Ryzen processors (3rd and 2nd generations) and Ryzen with a graphic kernel of Radeon Vega (2nd and 1st generations) which are installed in the AM4 connector. Containing up to 16 kernels made on technology of 7 nanometers, models of the Ryzen series of the 3rd generation embody innovative microarchitecture of Zen. AMD processors for the AM4 connector support Gen2 USB interface 3.2 (10 Gbps), 16 PCI Express 4.0/3.0 lines and two-channel random access memory of DDR4.
