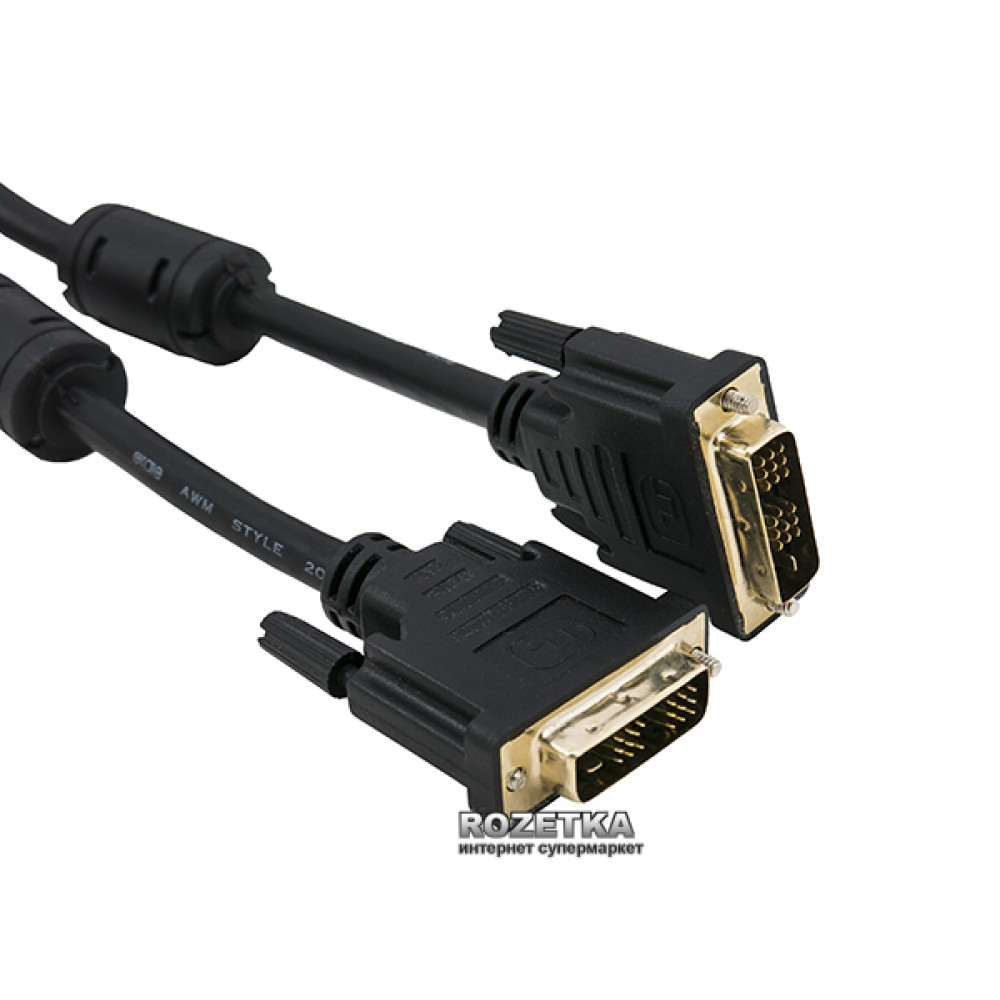

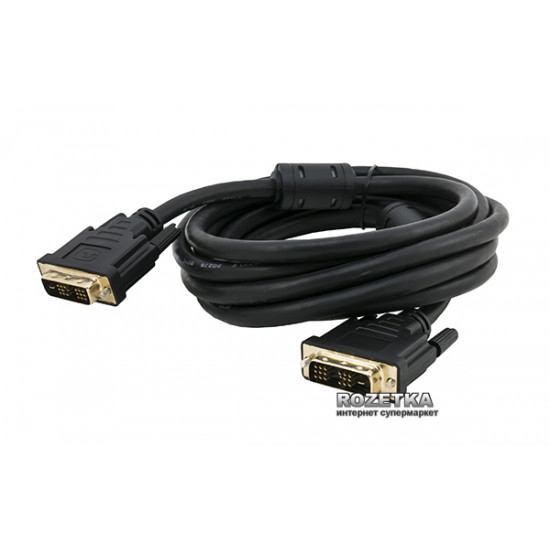

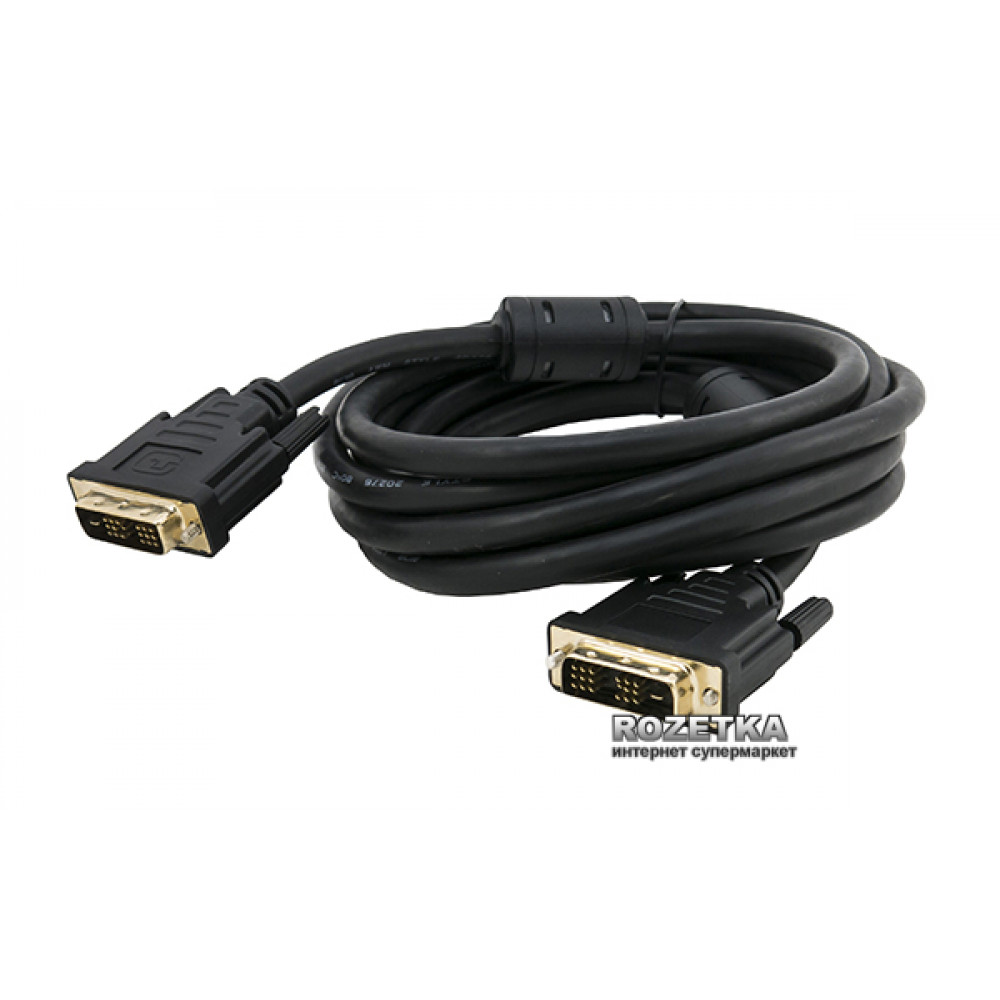

Extradigital DVI-D Cable, Single Link, 3 m, 28 AWG, PVC, 2x Ferrites (KBD1638)

Extradigital cables are manufactured using the most modern equipment and comply with the requirements of CE, RoHS, FCC, ATC standards. Twisted pair conductors are manufactured very precisely, maintaining uniformity and thickness of the dielectric along the entire length. The individual twisted pairs in a common shielded cable are individually shielded to prevent capacitive crosstalk between signal conductors.
Characteristics:

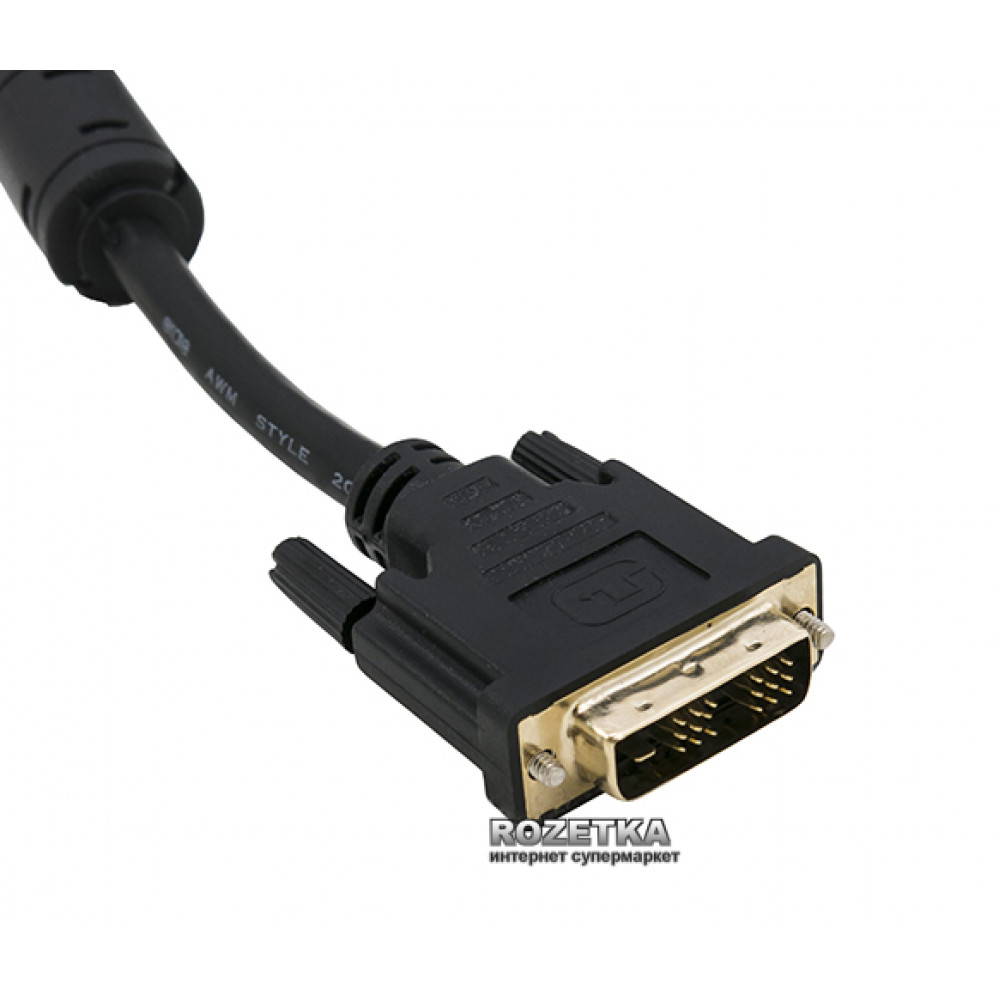

• Connector type: DVI – DVI (male-male)
• Connectors: DVI-D, 19-pin < /li>
• Length: 3 m
• External diameter: 8 mm
• Conductor material: 99.99% oxygen-free copper
• Conductor cross-section: 28 AWG (0.081 mm?)
• Contact coating: nickel
• Shielding: multilayer, double braid and foil
• Number of ferrites: 2
• Braid (color ): PVC (black)
• Data transfer rate: 4.95 Gbit/sec
• Support: High-definition video 1920x1200 DVI DDWG standard

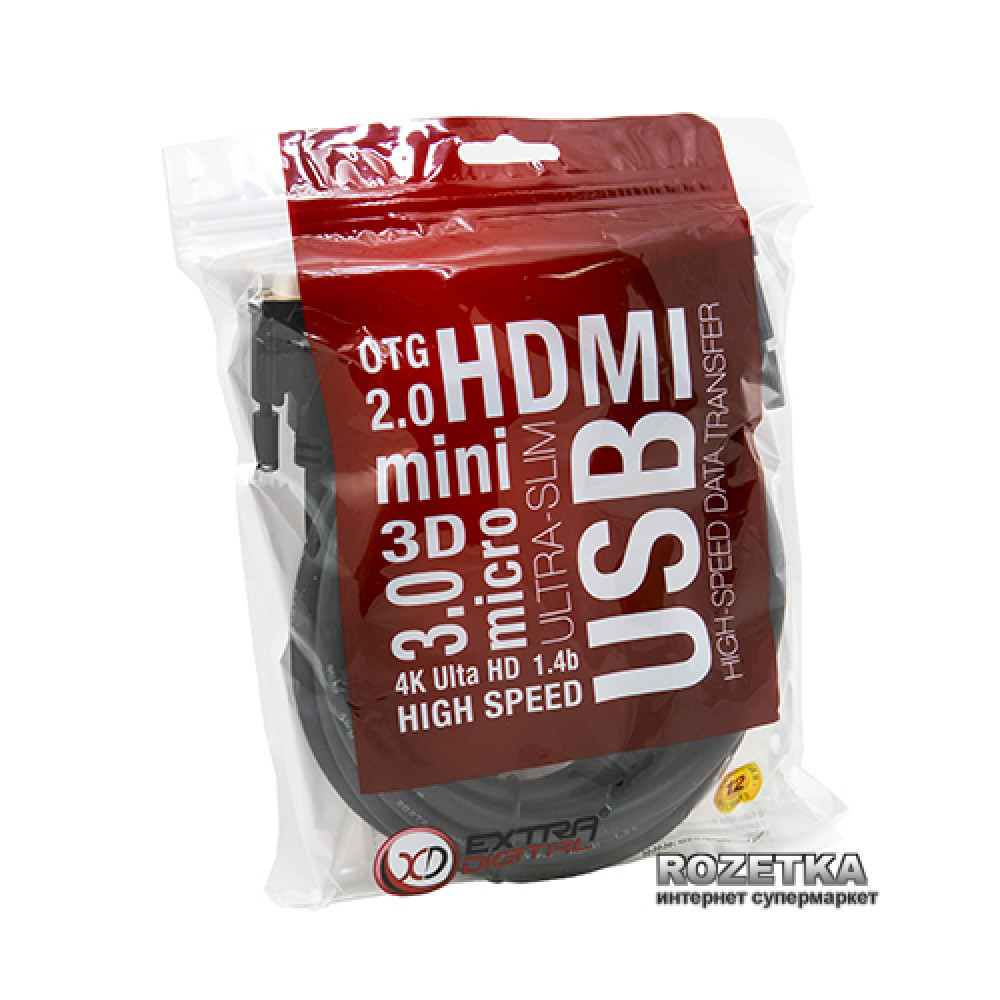

• Package dimensions (L x W x B): 230 x 165 x 10 mm

Features:

• High quality DVI-D Single Link video cable
• Double shielding and two ferrite rings
• High resolution video support
• High video data transfer rate
• Hot-plugging support for DVI displays
